Ed Livingston Sales Co., LLC

Parts and Miscellaneous

File Number Make Model Year Equipped Carrier Click on Image to Enlarge
1346-20 ACCESSORY EQUIPMENT PACKAGE:
Hydraulic sub
Triplex pump
Mud system
Drill pipe
Generator
Doghouse/tool house combo
Cat walk w/pipe loading arm
Plus Plus!!
VARIED COMPLETE ACCESSORY PACKAGE FOR MOST MEDIUM SIZED RIGS. WELL OVER A MILLION DOLLAR VALUE NEW. ALL FOR $165,000.
RIG IN PICTURES IS NOT INCLUDED WITH THE PACKAGE AS IT HAS BEEN SOLD.
SUBSTRUCTURE:
8' 6" hydraulically raised w/winterized cellar and BOP plumbing.
MUD PUMP/TANK COMBO:
Gardner Denver PAH275 8" x 140spm triplex mud pump p/b 400 big cam Cummins--Mixing hopper and (2) 4 x 5 electric powered charge & mixing centrifugal pumps--95 bbl mud tank with plumbing, (1) DFTS linear shale shaker--No desander cones--Choke manifold on end of mud tank--All on 1 skid but could be modifi
ed to be a 2 piece unit.
DOGHOUSE/TOOLHOUSE COMBO:
1997 48' enclosed trailer--change room w/lockers, knowledge box and remote BOP controls. Tool house has been left as it came out of the field with spare parts etc. still in it.
COMBINATION BUILDING: 175 KW John Deer generator, 80 gal. accumulator station, water storage tank
CATWALK: W/hydraulic pipe loading arm.
DRILL PIPE:
Approximately 2300' of 4 1/2" x Range II in (1) pipe basket
FLARE PIPE:
Approximately 165'
 Oilfield skid mounted units
1397-1 Auxilliary Equipment varied BUY ALL THIS EQUIPMENT FOR $40,000!!
LOCATED IN GILLETTE, WY.
2300 2 7/8 tubing (in pipe tub #1) (pitted-fence post grade)
2300 used 7/8 pump rods (on ground next to pipe tub #1) (pitted & caroded)
Empty pipe tub #2 good
1979 Aztec 40 Oilfield float drill collar trailer (all tires shot)
1978 Columbia 40 pipe trailer. (tires bad)
1995 Oshkosh 90 bbl. 6x6 water truck w/vacuum pump
1995 Freightliner doghouse--
Wilson 600 mud pump p/b Series 60 Detroit.
Regan Annular BOP 10 x 3000 psi.
Hydrill 17K80 closing unit w/2 80 gal units
100 joints 4 FH x range II drill pipe
(11) 5 1/2 x 30 +/- drill collars with 4 pick up subs on oilfield float trailer
1 hydraulic pipe spinner--2 sets drill pipe elevators
1 set drill collar slips
5 6 substructure w/ramp
11 H substructure w/V Door & catwalk (good condition)
Drive box for Challenger 320 raised rotary table
Shale shaker (no screens)
17 rotary table
Cathead w/chain spinner--
2 mud tanks
1 Kingsbury Drilling water tank
Misc hoses in mud tank
Misc. subs, elevators, slips etc.
CALL 307-587-5192 FOR PICTURES AND MORE INFO.
1388-5 Air Tugger Near new surplus air tugger. $2500
1358-1 Doghouse/Tool
Trailer
DOGHOUSE/TOOL TRAILER: 1997 48ft enclosed trailer doghouse/tool house combination. Change room with lockers, knowledge box and remote BOP controls. Tool house has been left as if it came out of the field with spare parts etc. still there. ADD: $25,000.
1127-10 Doghouse 30' Van 30' Hylander van trailer/doghouse Rear lift gate--Extra side door--16.5" tires.
1358-1 Generator/
Accumulator
House
GENERATOR/ACCUMULATOR HOUSE: 175Kw John Deere generator, 80 gallon accumulator station, Water storage tank. $40,000
1358-1 Catwalk/Pipe
Loader Trailer
CATWALK/PIPE LOADER TRAILER: $15,000
1127-9 Generator 60KW 60KW diesel powered generator Available at extra cost:
Tandem axle single wheel tongue pull trailer with spoked wheels and diamond fenders: Add $2000
1179-4 Hole Opener 14" TCI NEW NEW 14" pilot type hole opener w/button inserts--(1) spiral reamer assembly with 2 7/8IF box top and 4 1/2" regular box bottom tool joints--(2) 14" bit assemblies have never been in the hole.
1351-2 Kelly & Bushing 4 1/4" x 37' square kelly with Varco roller type drive bushing
1388-7 Mast Driltech D-40K 1976 Driltech D-40K blast hole mast w/hoist cylinders, chains and sprockets-No tophead included.
Unit is straight and serviceable
1326-4 Mast Hopper 86' x 187,000 (6 lines) telescoping mast SN:231 Call 307-587-5192 for pictures.
739-11 Rotary Table Speedstar 18" 18" Speedstar rotary table with new bearings & seals--Good gears
Facing the end of the pinion shaft if you rotate the pinion counter clockwise the table will turn clockwise (to the right))
Mounting bolt hole pattern: 31" side to side and 35" front to back.

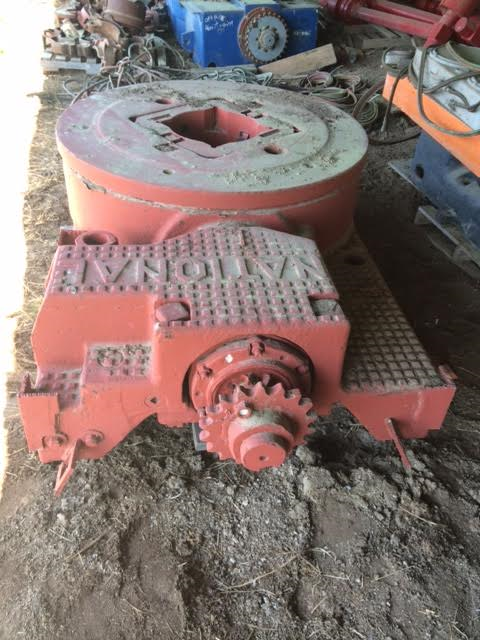

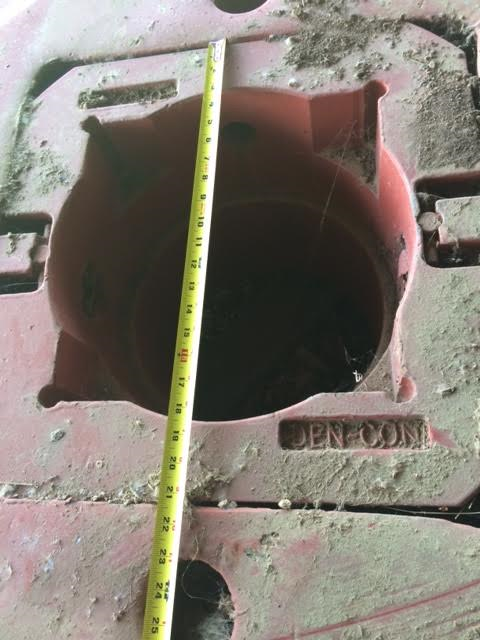

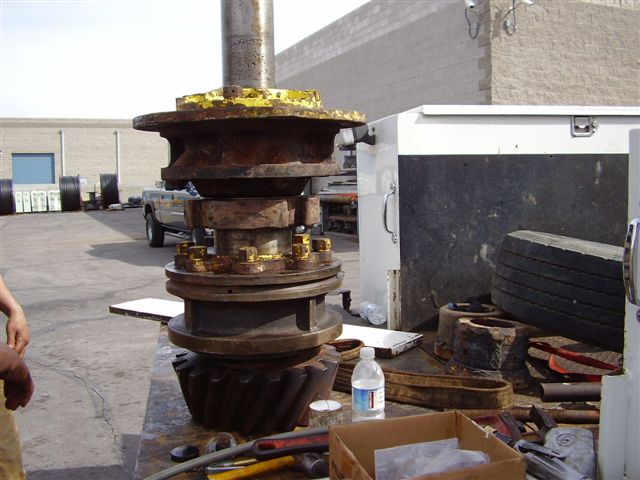

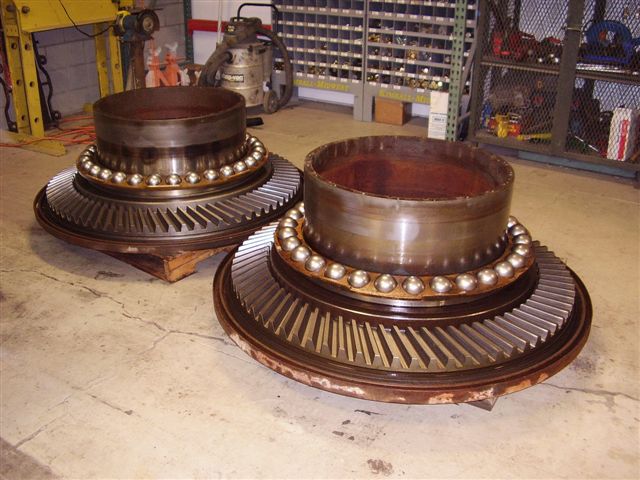

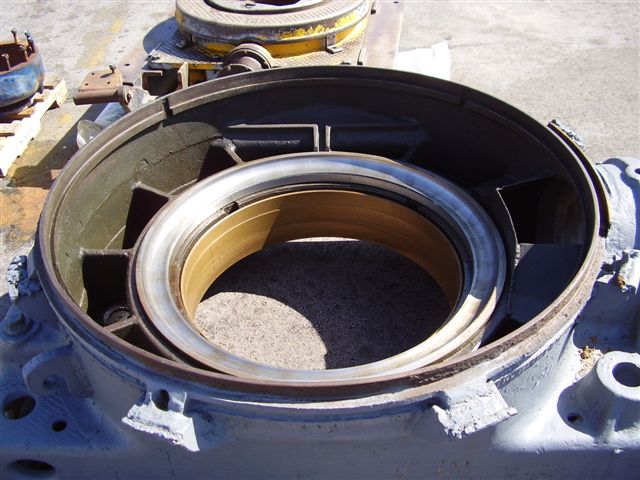

1315-1 Rotary Table 27 1/2" National 27 1/2" rotary table--Unit was dismantled, gears were very good--New bearings and seals
DIMENSIONS: 86 1/2" L X 48" W X 28" H.
1358-1 SUBSTRUCTURE HYDRAULIC OPERATED SUBSTRUCTURE: 86 high hydraulic lift substructure, winterized cellar, c/w BOP Plumbing (cost over $200,000 to build) $75,000
1125-14 Substructure 5' NICE SUB!
5' substructure with ramp.

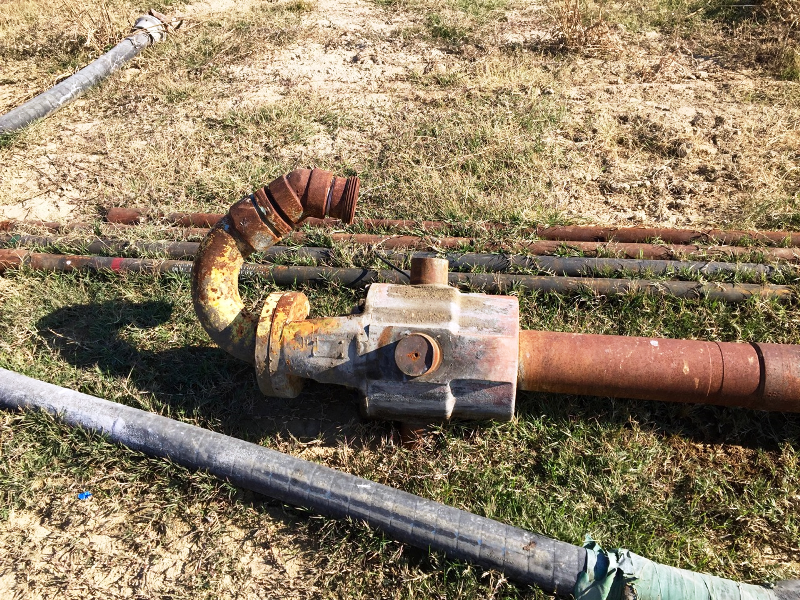

1351-1 Swivel Howard-Turner 100 ton Howard-Turner 100 ton x 3" opening swivel--
1351-3 Tongs Woolley (2) Woolley Type B breakout tongs
1346-10 Tophead Drive High Torque NEW FOR TH-60
(2) NEW Alpec Manufacturing Co. high torque (4) motor tophead drives units w/3 1/2IF box x box connections--$10,000 each.
Dimensions: 32" Wide on main body (plus channel brackets)

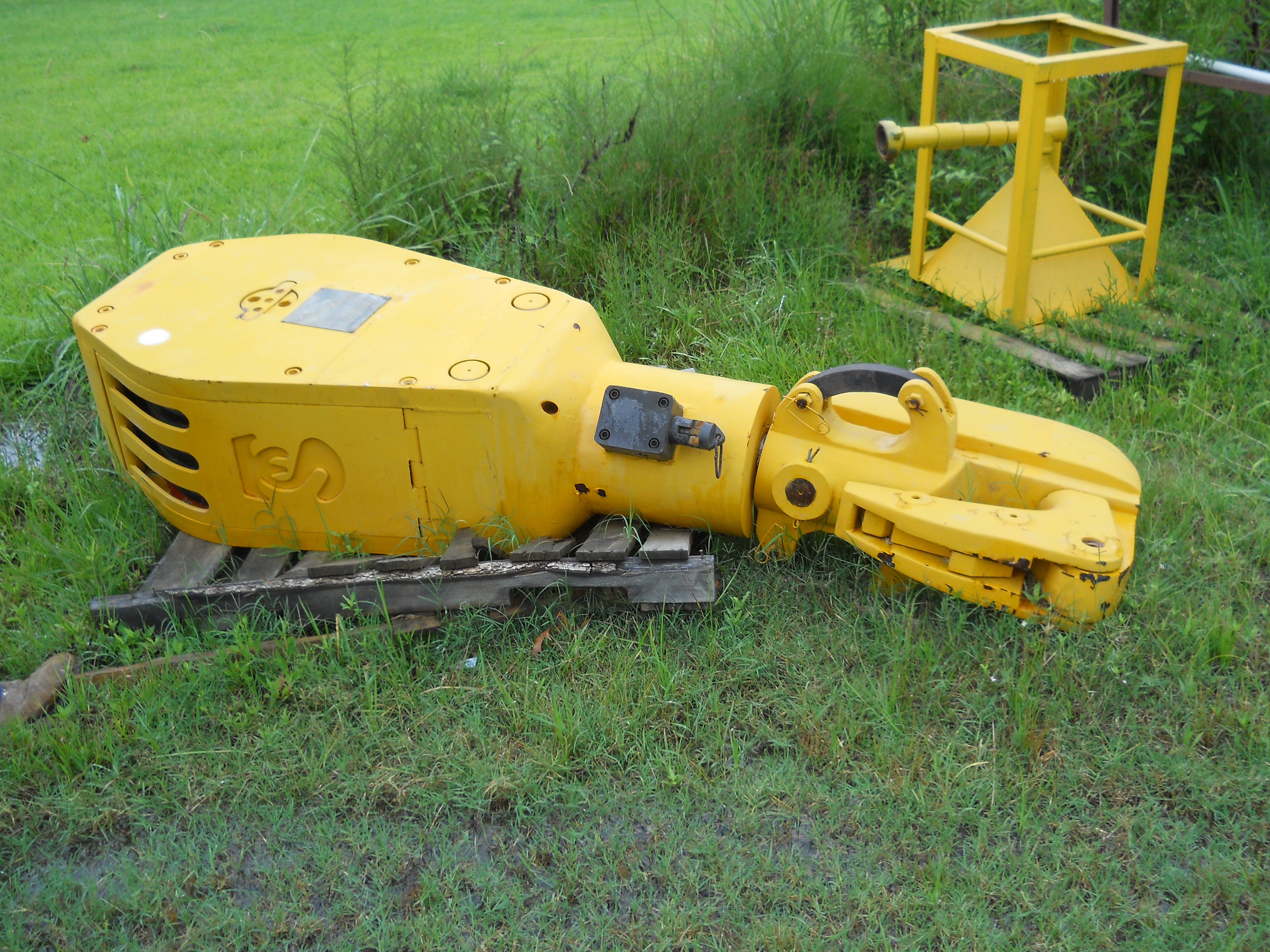

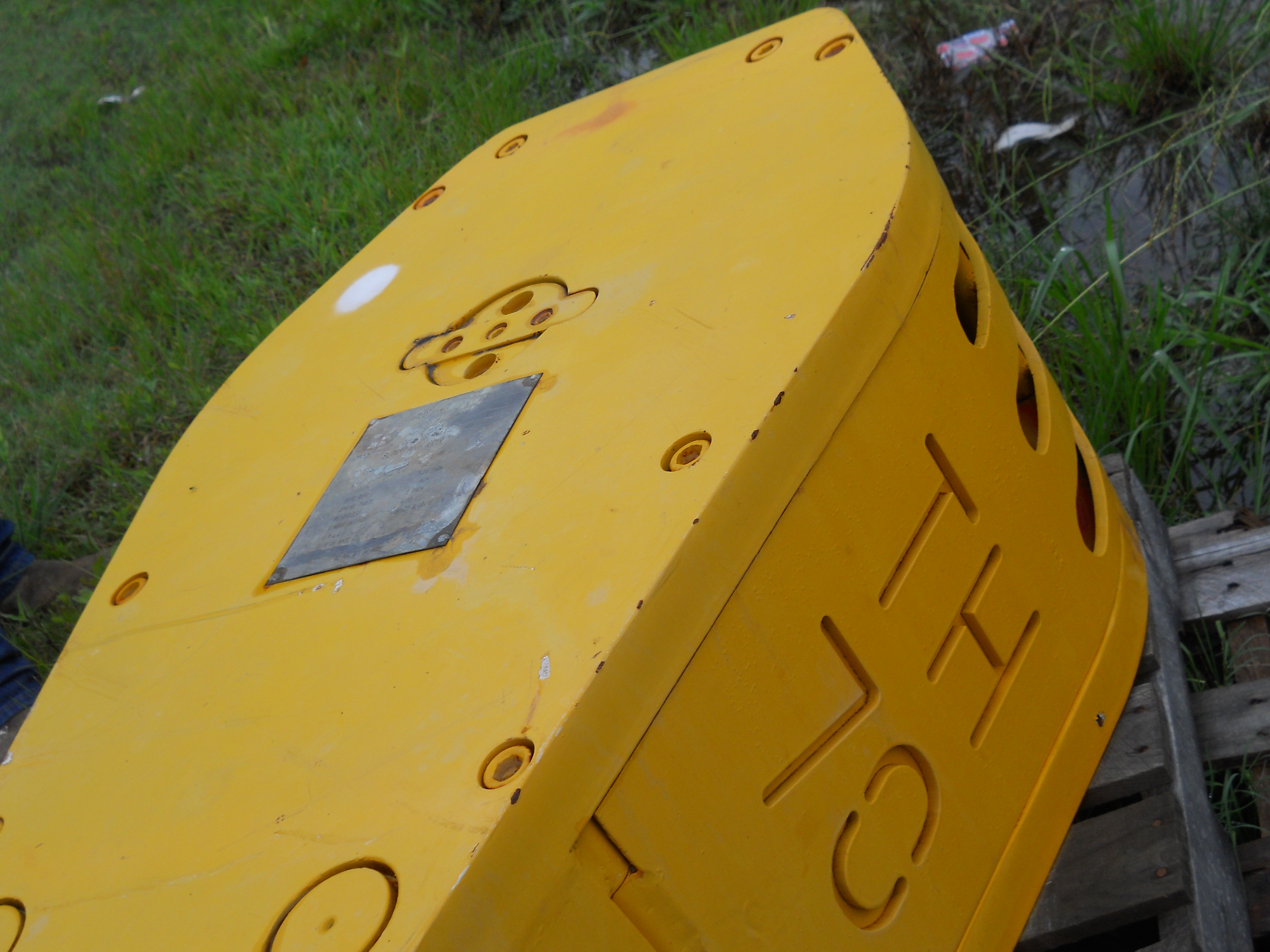

1253-2 Traveling Block 80 Ton NEW NEW Mud King 80 ton (3) sheave traveling block and hook
