1358-1 Astec 455X 2012 TRACK MOUNTED EXPLORATION RIG
Deck Engine -
Caterpillar C-15 Acert turbocharged diesel, Tier 3, Stage IliA emissions
580 HP (433 KW) @ 2,100 RPM
1,953 ft/lbs (2,647 Nm) @ 1,400 RPM
Heavy-duty two (2) stage air cleaner
24 Volt DC electrical system
Cooling system - up to 125 deg. F ambient (52 deg. C)
Fan Drive:
Hydraulic driven on-demand fan drive
Fuel Capacity:
Single bolt-on tank - 200 Gallons (757 L)
Operation - 6.1 hours at full horsepower
Compressor - OPTIONAL
Sullair 2022 / 1211
Maximum flow - 1,050 CFM (27 cmm)
Maximum pressure - 350 PSI (24 Bar)
Type - Two (2) stage rotary screw
Drive - Mechanical drive from engine PTO
Clutch - Electro/mechanical actuated
Hydraulic System:
Single bolt-on tank - 100 Gallon (378 L)
Carriage - Closed loop piston pumps
Rotary Head - Closed loop piston pumps
Accessory - Open loop high pressure system
Filtration, open loop - 5 micron
Filtration, return - 5 micron
Filtration, charge - 5 micron
Undercarriage:
Make and Model - CAT 315L
Speed, low - 1.3 mph (2.1 kph)
Speed, high - 2.2 mph (3.5 kph)
Track Control - Independent proportional electric over hydraulic
Control type - remote with warning alarm
Brakes - Spring applied hydraulic release (SAHR)
Grouser - 20" (500 mm) wide, triple gousers
Guards - full length track guiding guards
Outriggers:
Independently controled outriggers
Front, two (2) 4" (102 mm) bore x 3.5" (89 mm) rod x 48" (1,200 mm) stroke
Rear, two (2) 4" (102 mm) bore x 3.5" (89 mm) rod x 36" (914 mm) stroke
Mast:
Unitized tubular structure with hydraulic actuated locks
Length: 33'9" (1O,287 mm)
Head Travel: 25' (7,620 mm)
Table Type: Split type design
Table: Swing out rear and retractable front
Table Capacity: Up to 12" (305 mm)
Breakout Wrench:
3 to 14" (76 to 356 mm) diameter
9,000 ft/lbs (12, 202.4 N-m)
30 Degrees total
58,000 Ibs (258 kgs)
Feed System:
Rack & pinion drive system with three (3) speeds
Pull up capacity: 45,000 Ibs (20,412 kgs)
Pull down capacity: 22,000 Ibs (10,000 kgs)
Speed low: 107 FPM (33 MPM)
Speed, med: 160 FPM (49 MPM)
Speed, high: 214 FPM (65 MPM)
Top Head Rotation:
Sliding top head design with floating sub
Three (3) speed, single reduction, heavy-duty gear box
Speed, low: 0-95 RPM
Speed, Med: 0-143 RPM
Speed, high: 0-190 RPM
Torque: 5,000 ft/lb (6,780 N-m)
Water Course: 214 FPM (65 MPM)
Pipe Handling System:
Patented automatic pipe handling system
Drill Pipe and Basket:
600' (183 m) capacity each
20' (6.1 m)
3.5" (89 mm)
4" (102 mm)
4.5" (114 mm)
Winch:
Hydraulic -drive planetary winch with spring applied hydraulic relase brakes
Standard capacity: 15,000 Ibs (6,800 kgs)
Cable Length: 150' (46 m)
5/8" (16 mm) diameter
82 FPM (25 MPM)



Additional Standard Items:
Hammer Holder
Six (6) 24-V DC work lights
12V DC Power Supply
Tie Down Hooks
Tow Hooks
312 Cat tracks
1339-1 Atlas Copco CS-1000
Core Rig
2011 CS1000 P4 fully hydraulic surface diamond core drill,
Cummins model QSB4.5 TIER 3, turbo charged/after cooled 4 cylinder diesel engine rated at 86,5 kWt (116 HP) at 2500 RPM
Standard Features:
20 foot pull mast with 1.83m. (6 ft) feed stroke
"P" capacity drillhead with 4 speed transmission and hydraulic chuck (less chuck jaws and bushings)
Hydraulic circuit for water pump, mud mixers, etc
Hydraulic main hoist - 4,090 Kg (9,000 lb ) single line,
8,182 Kg (18,000 lb) double line capacity
Hydraulic wireline hoist with capacity of 6,000 ft of 3/16 in cable (less wireline cable)
Fuel tank 34 gal (125 L)
Optional Equipment:
Hydraulically operated P-size holding clamp
Upgrade to single large dia. crown block sheave
FMC W1122BCD mud pump c/w hydraulic motor, including
20' suction hose, 40' pressure hose, bypass assembly
Hydraulically operated mud mixer.
Lighting kit
Removable rod guard kit
Flow meter, FMC W1122BCD
Spindle RPM counter
Wireline Winch Levelwind
E-Stop Button Kit (1 on each side of drill)
Decal kit - English
Single axle dual wheel tongue pull trailer. Towing package including stub axles, manual leveling jacks, and four 16 in wheels with LT205/85R H.D. tires
1348-1 Atlas Copco RD-20III 2001 1250/350 model HR2.5 Atlas Copco compressor w/manual clutch--Deck engine: Cummins QSK-19C 750HP--Mast: 62'--Pullback: 120,000 lbf--Pulldown 30,000 lbf--Spur gear head w/8000 lbf torque--Floating spindle--25 gpm Cat water injection system--55 gal. DTH oiler--Near new Petol breakout tong.
Approx. 1000' used 4 1/2 drill pipe.
2001 (4) axle Crane Carrier p/b Cummins
1369-2 BE 36L   Standard 36L old series-Needs lots of TLC Trailer
1354-1 BE 22-W   PARTS RIG.
Standard 22W with gas/propane engine.
(1) stem, (1) rope socket and possibly some other tooling.
Ford single axle truck with gas engine. (No title to truck)
1241-2 BE 22-W   Very nice rig.
Series II p/b QX Series 6 cyl. Hercules engine--Auto braces--Main line has approx. 300' 3/4" cable--Sandline has approx. 500' 3/8" line--Casing line has 5/8" line and (2) part (1) sheave traveling block--No cat head.
INCLUDED WITH RIG:
(1) set of tools (your size choice) to include:
(1) stem
(1) set jars
1988 Ford single axle chassis w/gas/propane engine & 5 x 2 transmission.
1241-6 BE 60-L   Standard 60-L--6 cylinder Buda propane engine--Can set 40' casing--guylines and braces--Cathead--1500' NEW 3/4" main line--1500' NEW 3/8" sandline--INCLUDED WITH RIG:
(1) set 2 3/4 x 3 3/4 tools to include (1) ropesocker, stem and drilling jars and (1) either 6", 8", or 10" bit.
New clutches on reels--
Trailer mounted with new running gears and Budd wheels.
1382-1 Calweld 175 1975 Triple scope kelly 75' depth--30" ring gear--IHC UD-282 diesel deck engine--(2) hydraulic rear jacks--Hydraulic swing arm--18" & 24" buckets--Bucket cutter bar up to 60"--Fast line--Parts for hydraulic crowd are included but need to be reinstalled on unit. HC tandem axle chassis with 671 Detroit and 5 x 4 transmissions.
725-11 Calweld 175B 1976 85' depth--3 cyl. Detroit diesel deck engine (400 hrs)--36" & 42" buckets 1996 Freightliner tandem axle chassis p/b 60 Series Detroit diesel--New tires
1357-1 Canterra CT-150 1980 LIGHT WEIGHT (NO CDL) RIG
Perkins diesel deck engine--Hydraulically driven by Perkins engine Myers triplex mud pump low mounted under deck--Tophead drive swings to side to allow handling 20' casing--(2) Hydraulic winches--Split table bushing-Wiggle tail---Breakout wrench--Bean water injection pump--(4) hydraulic leveling jacks--side 15' pipe rack--200 gal. fuel tank on deck and 100 gal. fuel tank for truck engine.
INCLUDED WITH RIG:
Drill pipe: 150' 2 3/8 x 15' and 70' 2 3/8 x 10' MHJ.
Quick disconnect hoist plug
(1) 4" Bullrock DTH hammer drill w/(1) new button bit
(1) 4 1/2" PDC bit, several drag bits
1979 IHC 4900 single axle chassis p/b IHC 6 cyl. diesel engine thru 5 speed transmission and 2 speed rear axle 80,000 miles.
NOTE: Unit weighs 25,000 lbs so no CDL is required.
1346-16 Canterra CT-450 2008 850/350 air compressor--3406 Cat deck engine--Tophead drive--25' mast--20' head stroke--Pullmaster 12,000 lb hydraulic winch--Breakout wrench--Sand line winch--(4) hydraulic leveling jacks--Operators and Helpers platforms 2008 Freightliner M2-106 tandem axle chassis
1295-1 Core Rig Discovery EF-50 2007 5000' HYDRAULIC CORE RIG.
5000' capacity NW Rod--25,000 pullback--FMC/Bean 435 triplex pump (hydraulically driven)--Cummins Tier 3 215 HP engine--Funk (4) speed transmission--Fully hydraulic B-N-H-P rod handling--Drill head (0 to 1000 rpm)--Boyles 12HH chuck--Rod clamp--Wireline Hoist DDM design 5000 ft. capacity w/level wind--1000 lb. capacity rod hoist--12 volt interior lighting--Drill shack w/ (4) hydraulic leveling jack, rigid steel tubing with 1/2" plywood painted with high resistant epoxy paint--Rod make/break system DDM design facilitates hoisting and lowering rods--Drilling fluid mixer--Plastic tub with in-tub hydraulic mixer--
TOTAL WEIGHT READY TO DRILL: 21,000 lbs.
TOTAL HOURS: 12,700.

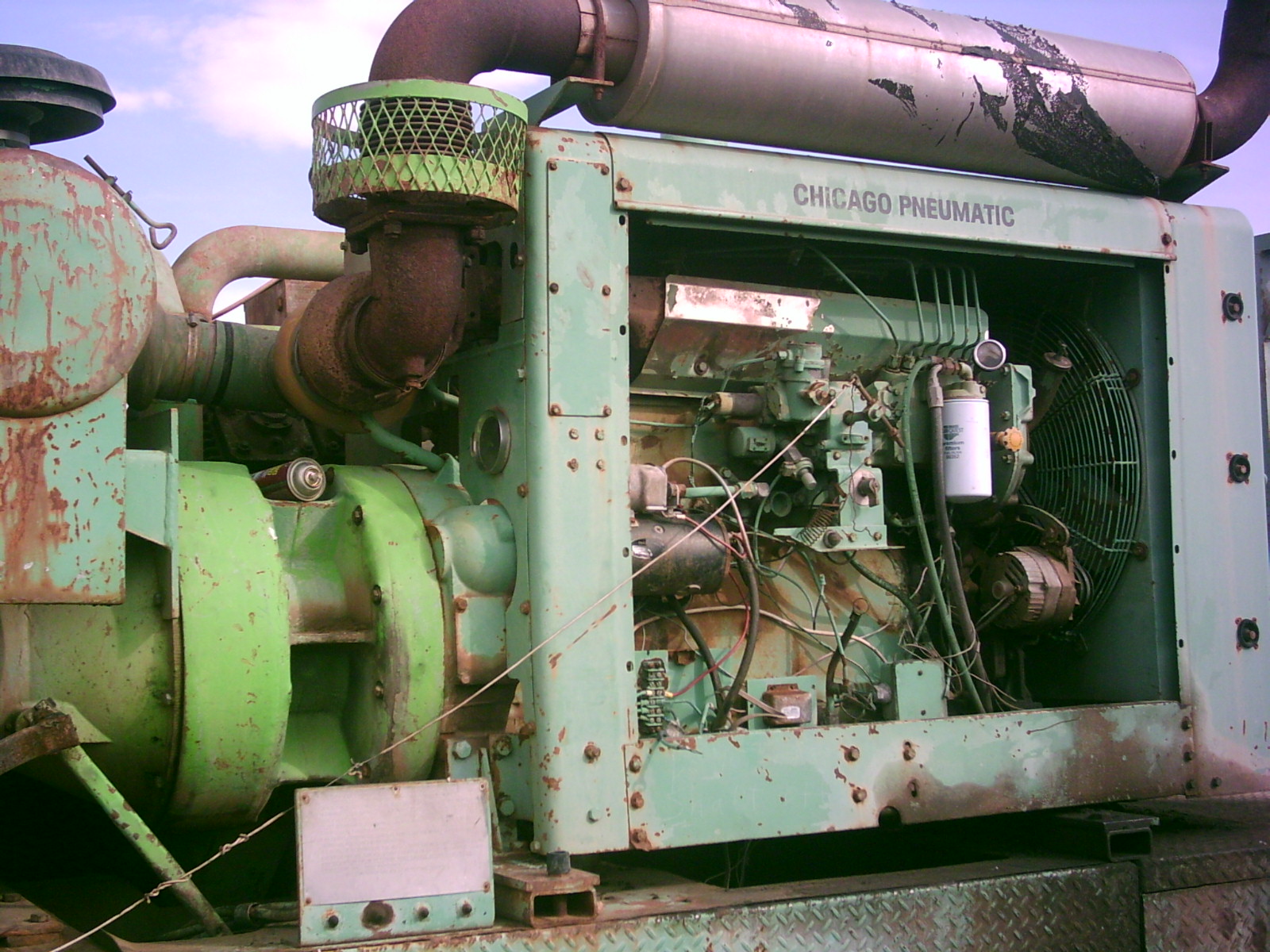

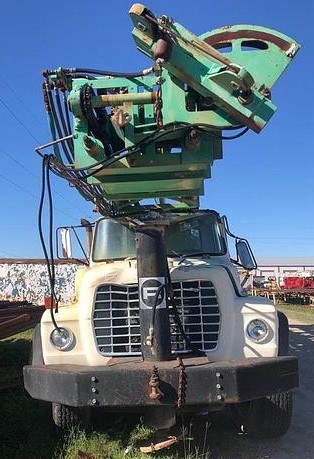

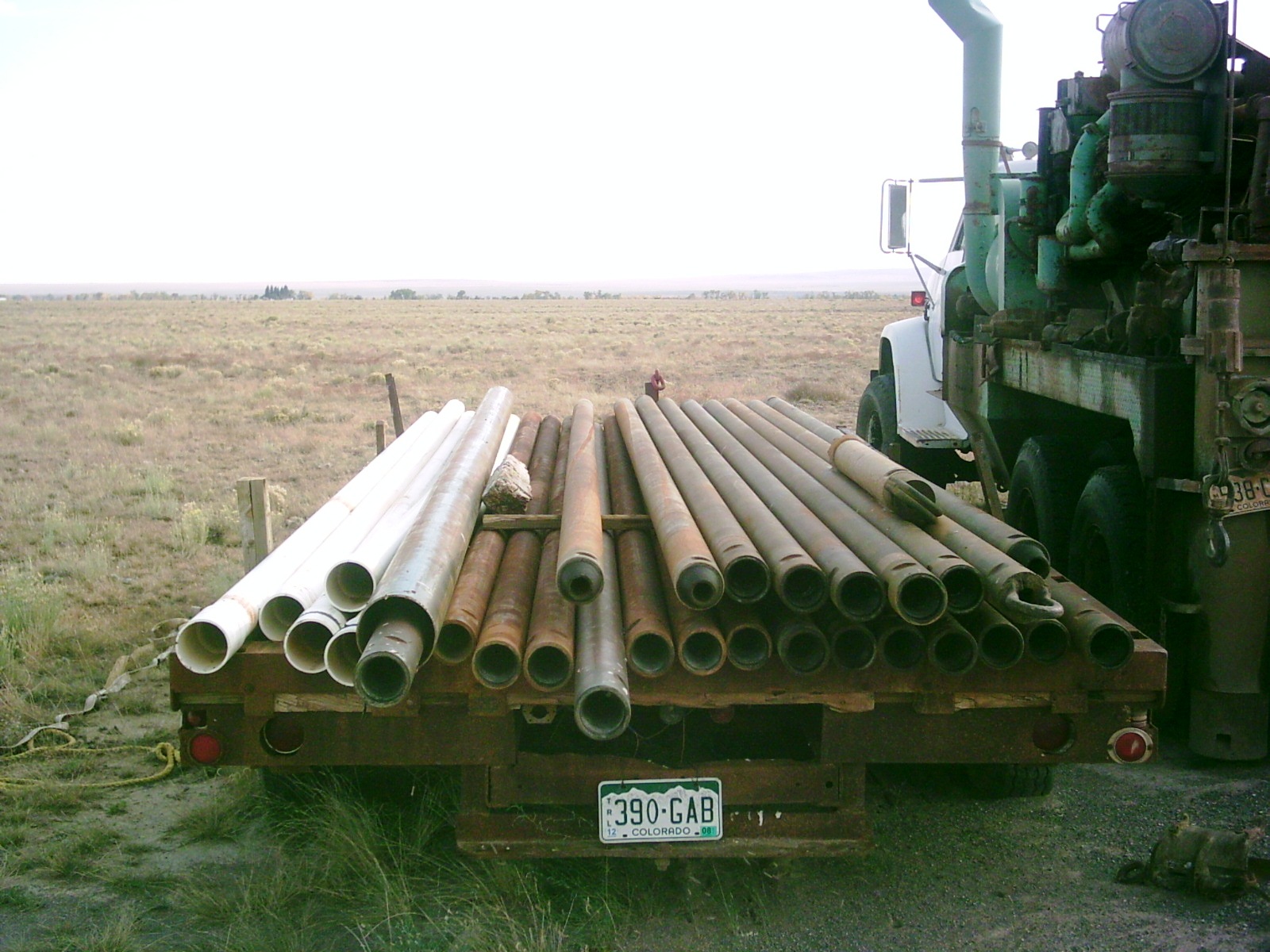

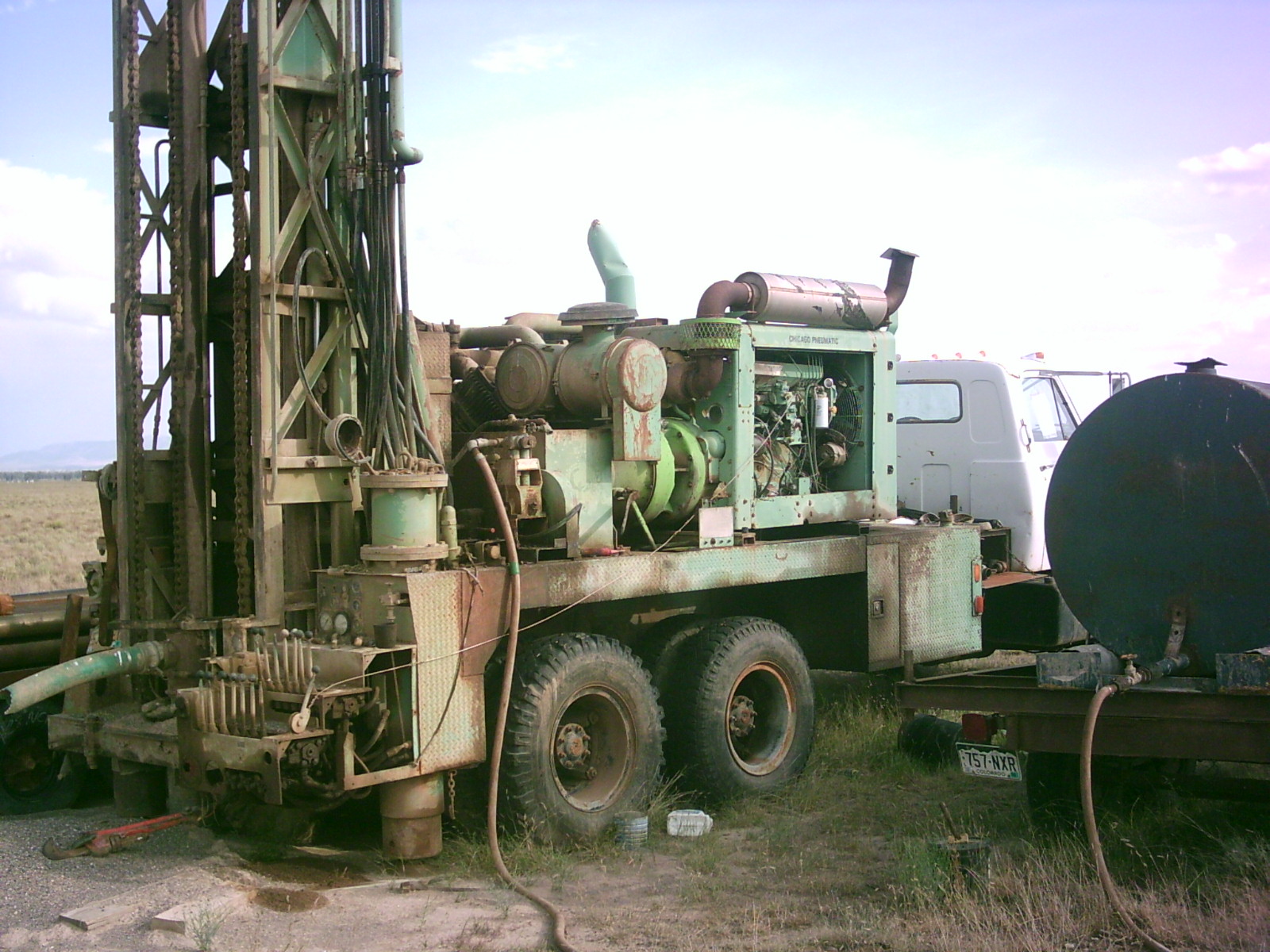

1127-6 CP T-650 1972 450/250 CP model PB-83 piston air compressor--3306 Cat deck engine--4 1/2" x 25' carousel (not on rig but included)--25,000 pullback--Water injection--(3) hyd leveling jacks--
AVAILABLE AT EXTRA COST:
This rig has the inside airline swivel, kelly, hose, and 200' 4" flanged reverse circulation pipe to convert
this rig for RC drilling. ADD: $5000.
Extra CP PB-83 Air compressor. ADD: $5000.
Rebuilt 3306 Cat engine ADD:$4000
Included with rig:

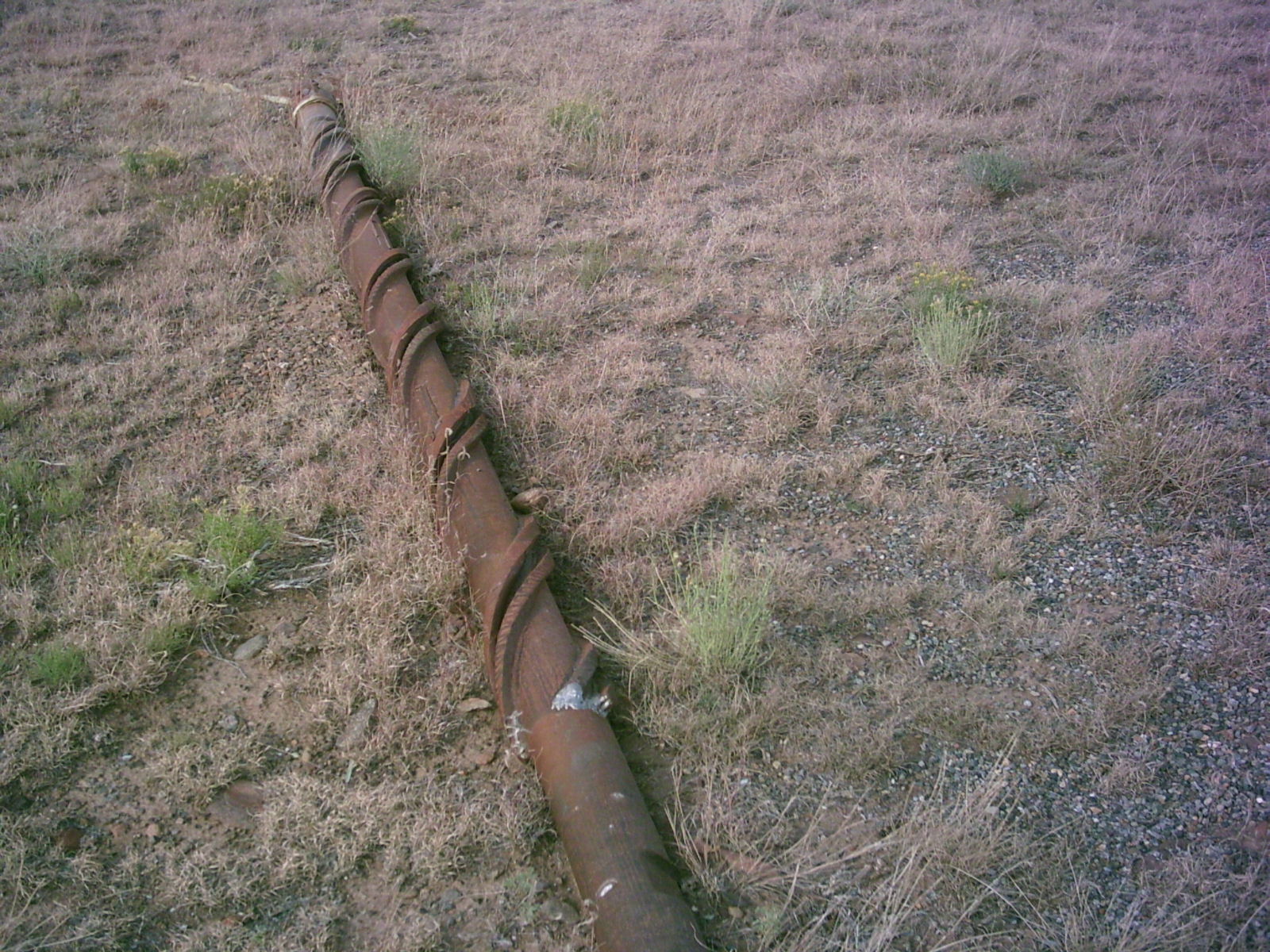

(4) 5" x 25' drill collars--
Approx. 700' used 4 1/2" x 20' 6" x 2 7/8IF Schramm drill pipe--A few piecs of 4 1/2" x 20' CP drill pipe--
6" DTH hammer--Misc. bits & subs.
1972 GMC tandem axle chassis with 427 gasoline engine.
1323-4 CP T-650 Retro   RETROFITTED W/SULLAIR COMPRESSOR
500/250 Sullair screw compressor--4 1/2" x 20' carousel--25,000 pullback--Water injection--(3) hyd leveling jacks--
This rig was retrofitted with the Sullair screw compressor and inboard driven by the truck engine thus eliminating the deck engine. It was also remounted on the Oshkosh 6 x 6 chassis.
Oshkosh 6 x 6 chassis p/b 6V92 Detroit Diesel.
1323-2 CP T-650   (2) to choose from $15,000 each!
PARTS RIG ONLY:450/250 CP model PB-83 piston air compressor--3306 Cat deck engine--4 1/2" x 20' carousel--25,000 pullback--Water injection--(3) hyd leveling jacks--

920-4 Driltech D-25KX 1989 NOW $90,000.00!!
TRACK MOUNTED-SAM
840 cfm @ 350 psi Sullair compressor--60 Series (450 hp) Detroit diesel deck engine--Slide angel mast--30,000 lb. pullback capacity--(4) cyl. Bean water injection system--Down the hole hammer oiler--Reverse circulation swivel w/plumbing--Hydraulic winch and jib boom--Hydraulic swing away pipe handling crane--Side pipe rack for 20' steel--Cyclone sampling system.
Air compressor overhauled by R & R approx 2000 hrs.--Detroit engine replaced original CAT approx. 4000 hrs. ago--
Hyundai 60,000 lb. capacity excavator track--Hydraulically powered.

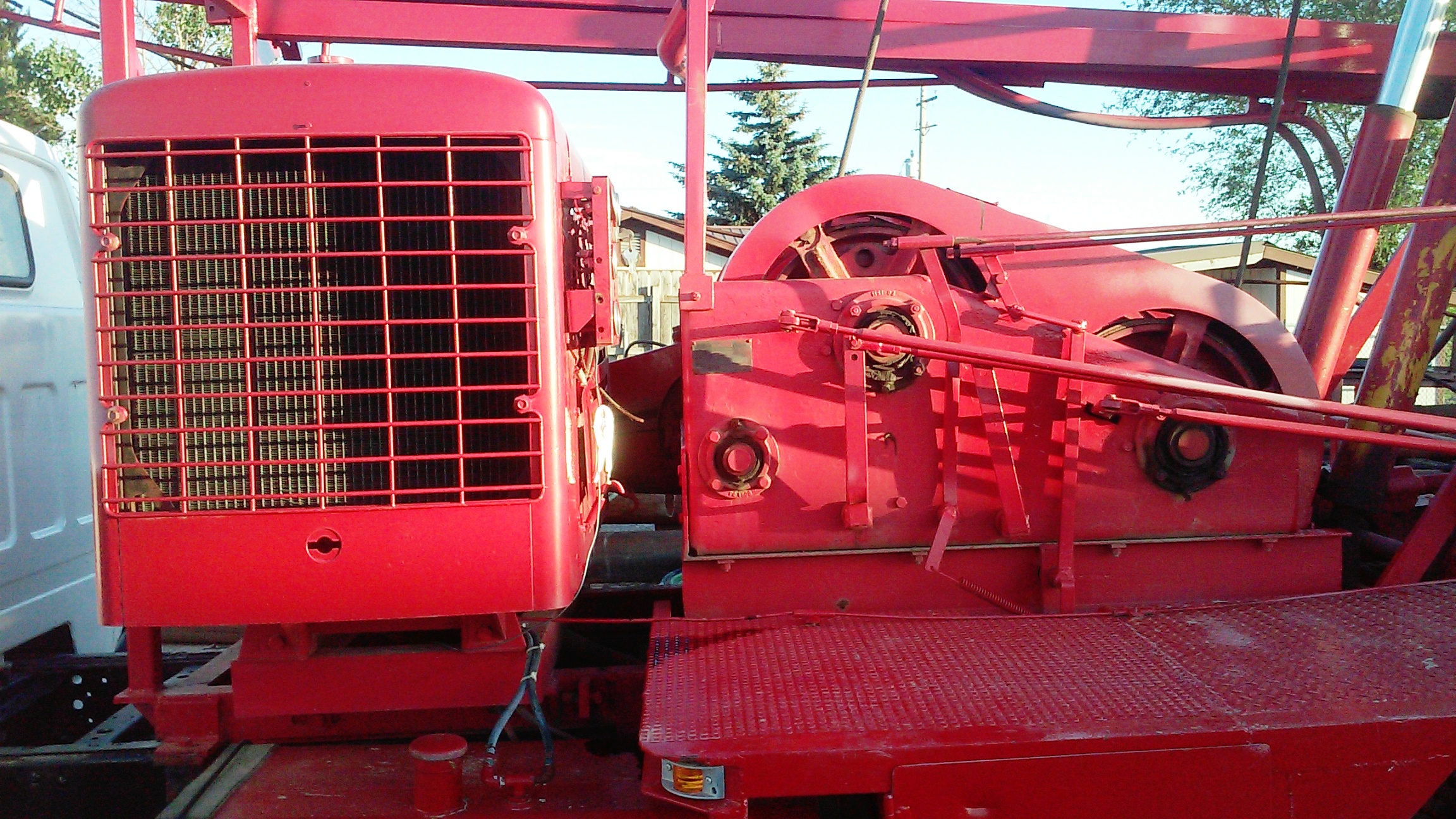

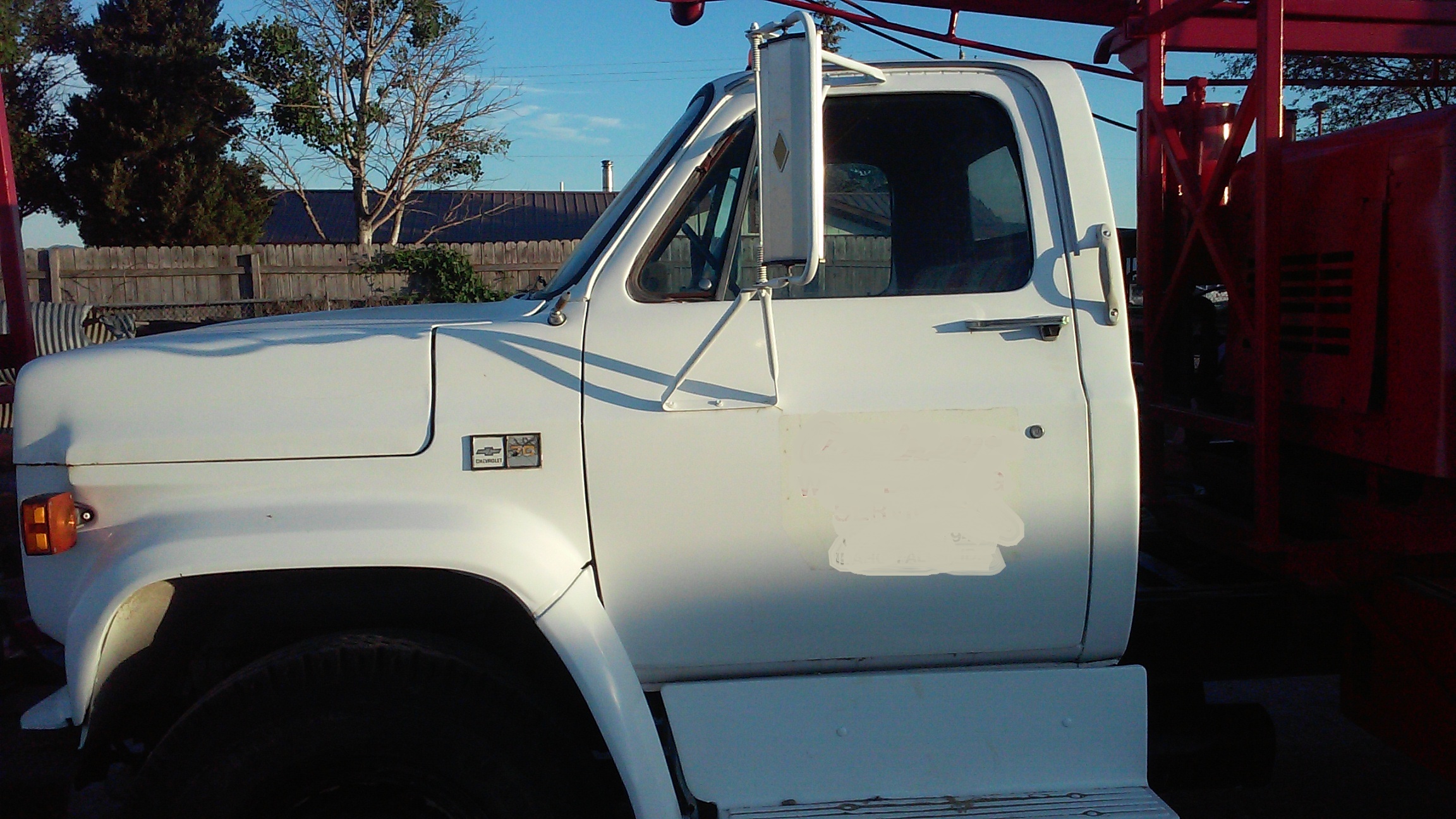

1360-1 Earthdrill M-36 1984 NICE CLEAN BUCKET RIG!
45" table opening--Gas deck engine--No crowd--Long mast--
INCLUDED WITH RIG:
(5) Buckets: 12", 20", 24", 36" & 36" with wings to 8' diameter
1984 Chevrolet single axle chassis with v/8 gas engine--
735-4 Ewbank M-100 2004 DEEP REVERSE RIG
Single 6" x 24" brake
Twin disc air clutch
3,000 ft of 1/2," wireline
12,OOO Ibs single line pull
883 fpm line speed (first layer)
Drawworks clutch and brake controls, hydrostatic variable speed plus two-speed selector and gauges
Rotary Table
Ewbank design, 18" opening
wo-speed hydrostatic drive
Table can be tilted to allow 40" diamete- clearance
0-92 RPM, 0-180 RPM
20,000 ft-lbs max torque (low speed)
100,000 lbs load rating
32" maximum bit size
Hydraulic System
125 gallon (stainless steel) tank
Leveling System
4 hydraulic jacks - 30" stroke
2 short stro e jacks in rear pin-on subframe
Mast Lights
110 volt fluorescent lights
Long Connection
Air controlled, main track extension allows kelly to come out of retract and be pulled up an additional 6 ft
1 short stroke jack behind front bumper
2 rear mounted screw jacks to support mast and table loads
Drill Frame
10 ft wide
Two fold-down catwalks
Includes railing and stairs, mast support, clearance lights, one toolbox
Road travel- 11 ft
Powertrain
Powered from truck engine

Extra Parts
1 - 18" Rotary Table 1 - Drawworks Gear Box
1- Drawworks Gear Box Shaft 1 - Hydraulic Pump (for Drawworks or Table)
1- Hydraulic Motor (for Drawworks or Table) 1- Hoist Cable
1 - OEM Swivel (Howard Turner) ~ - Kelly Cable
3 - Sprockets for Hoist, Kelly, Sandline Clutches 1- Table Driveline
1 - Misc. Bearing for Drawworks 1 - Kelly Drive Bushing
1- Owners/Repair Manual

2004 Peterbuilt (5) axle chassis p/b Cummins ISX - 460 HP, 2100 RPM
Fabco 500hp gear type PTO with air shift controls and oil cooler
11' wide in road travel position.
1377-1 Ewbank M-51 1978 $75,000 takes it home!
5 x 6 pump--development air compressor--23' x 2 7/8" kelly w/2 7/8IF saver sub--hyd. pulldowns--helpers platform--Side pipe rack for 29' pipe--6" retractable rotary table.
INCLUDED WITH RIG:
400' 2 7/8" x 20' x 2 7/8IF tool joint drill pipe.
1978 Chevrolet C-70 tandem axle chassis
578-7 Failing CF-15 1974/2015 COMPLETELY REBUILT & REMOUNTED ON CA CARB COMPLIANT PETERBILT
5 1/2 x 8 pump--New mast--Double durm drawworks with air clutches--Hydraulic chain pulldowns--Bailing drum--7 1/2" GD retractable rotary table--(3) hyd. Leveling jacks--3 1/2" x 24' kelly--Little Giant swivel--Side pipe rack and fast slide for 20' drill pipe--
2015 Peterbuilt model 567 w/256 total miles and 387 hours. CA carb certified.
819-27 Failing CF-15   5 1/2 X 8 PUMP ON BOARD
Failing model CF-15 mud rotary drilling machine complete with the following attached equipment: 5 ½ x 8 Gardner-Denver duplex mud pump—41’ mast--Double drum draworks w/mechanical clutches—Rebuilt 5 3/8” retractable rotary table—2” Little Giant swivel—3 3/8” x 24’ fluted Kelly—(1) swing away breakout tong—(1) breakout cylinder--(5) mechanical leveling jacks—(2) single sheave traveling blocks for 2 part line operations—Ratigan hoist line hook--No pulldowns.
(28) pieces (480’) used 2 7/8” x 20’ x 2 3/8IF tool joint drill pipe—(2) 4 ½” x 20’ spiral drill collars—(1) hoist plug for dril collars—Flat bed tongue pull pipe trailer.
Rig is mounted on and powered by 1977 IHC model: F-2070 tandem axle chassis w/diesel engine and 9 speed transmission—Aluminum wheels--Recap tires are fair-- SN:D1327GEB16782.

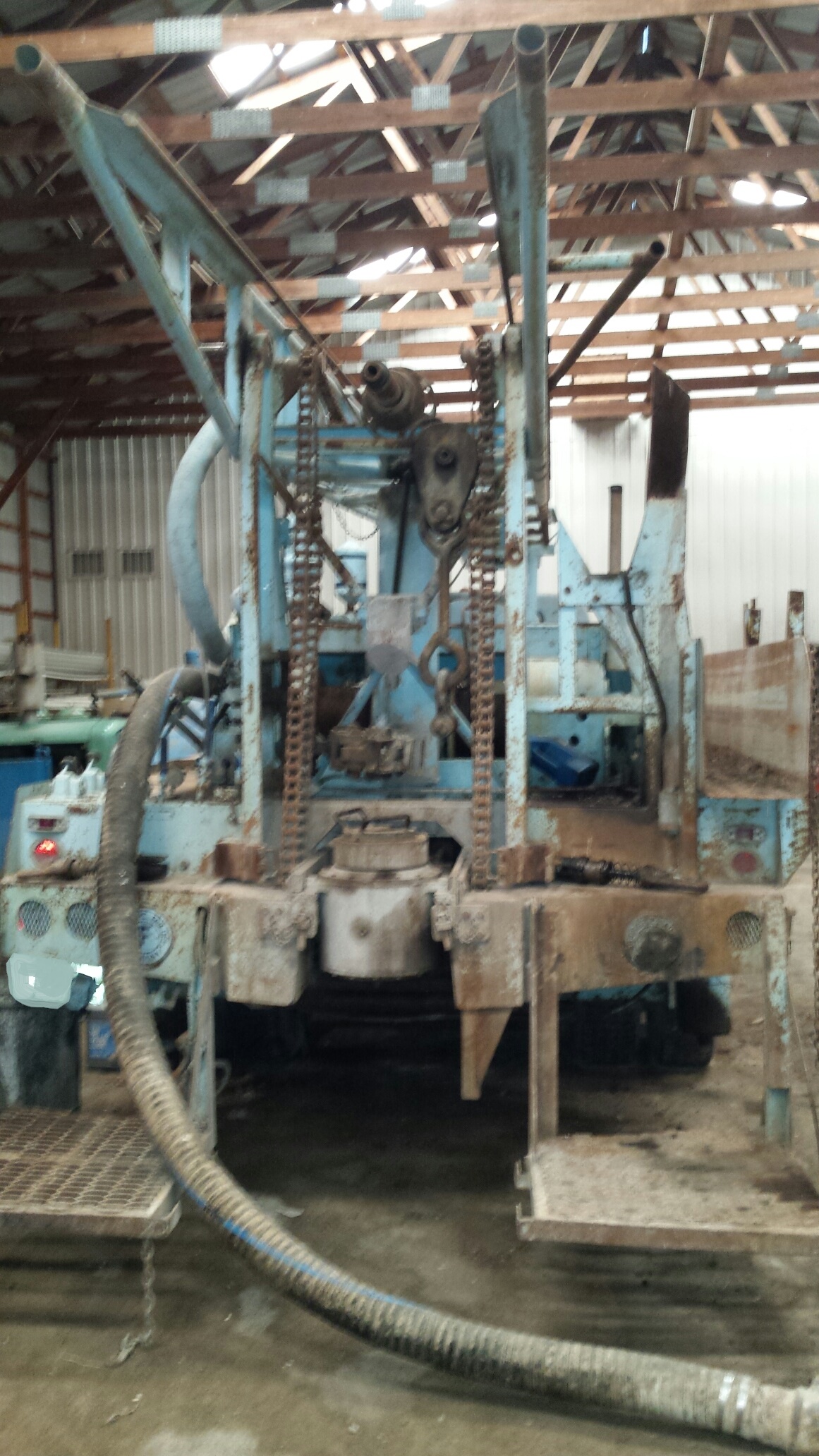

1344-1 Failing CF-15 1978 (2) 5 x 6 mud pumps--(3) drum drawworks with air clutches-35' mast--3 3/8" x 25' kelly--(3) hydraulic leveling jacks--Side pipe rack with fast slide--Misc pipe handling and operating tools
1978 GMC tandem axle chassis p/b 6V53N Detroit diesel engine--5 x 4 transmissions
1347-1 Failing CF-15 1978 GD 5 1/2 x 10 pump--LeRoi 256S2 (500/250) air compressor--42' mast w/(2) extra extentions available--Stabbing board included but not installed--3 1/2 x 24' kelly--All Air clutches--Retractable 8" Mayhew rotary table with 5" insert--Bailing drum included but not installed--2" Little Giant swivel--(4) part 5/8" kelly & hoist lines--(4) hyd. leveling jacks--BJ breakout tong--Drill pipe drill out slips--Spare rotary table transmission.
RECENT UPGRADES & REPAIRS.
Mud Pump: New pinion gear and bearings, Rebuilt fluid end with all new expendables, New drive chain--New Little Giant swivel--New fluid stand pipe, new ball and check valves--Near new cables--New spring hook--Pulldown gear box repaired--New kelly bushing--Spare rotary table transmission.
2000 Sterling tandem axle chassis p/b C-12 Cat diesel engine
725-8 Failing CFD-1B   (2) mud pumps- (1) 5 x 6 1/4" Failing model FM-45 and (1) 5" x 6" GD model FG-FXG--(Mud pumps are individually controlled w/winter covers)--IR piston type development air compress 125 cfm @250 psi)--Double drum drawworks with air clutches--5 1/4" non retractable rotary table w/locking nut--26' x 25,000 lb gross capacity mast--33/8x 18' kelly--King model 15 KF swivel--1 1/4" pull down chains--(3) hydraulic leveling jacks--(4) speed transmission--Side mount pipe rack for 15' pipe w/fast slide--Fold down walkway and ladder on drillers side--Drillers platform--150 gal portable mud pit--Aircraft type DC welder. 1979 IHC model S-2552 tandel axle chassis w/IHC DT-466 diesel engine and Fuller RT-613 transmission--10:00 x 20 tires--Step type fuel tank
725-9 Failing CFD-1B   LIGHT WEIGHT SINGLE AXLE TRUCK
(1) 5 x 6 1/4" Failing model FM-45 mud pump--IR piston type development air compress 125 cfm @250 psi)--Double drum drawworks with mechanical clutches--Bailing drum--5 1/4" non retractable rotary table w/locking nut--26' x 25,000 lb gross capacity mast--33/8x 18' kelly--Failing model S-1200 swivel--1 1/4" pull down chains--(1) front hydraulic leveling jacks--(4) speed transmission--Side mount pipe rack for 15' pipe--Fold down walkway and ladder on drillers side--Drillers platform--105 gal portable mud pit--Aircraft type DC welder--Tool boxes
1980 IHC Model S-1954 single axle chassis w/IHC DT-466 diesel engine and 5 x 2 transmission.
1265-2 Failing CF-2500 1982 REDUCED PRICE! NOW $325.000
EXTRA NICE BIG HOLE RIG.

58' mast w/swivel guide rails--Stacked double drum drawworks w/air clutches--18" Howard-Turner rotary table--GD model FY-FXD 6 3/4" x 10" duplex mud pump on deck--(2) 3 sheave McKissick traveling blocks including combo block and hook on hoist line-- (6) part lines both drums--Hydramatic brake--Auxillary hydraulic winch--4 1/4" x 34' square kelly--Roller type kelly bushing--3" ID x 40 ton swivel--3" kelly hose--No pulldowns--(4) hydraulic leveling jacks--Weight indicators both drums--(2) type LF tongs--Platforms, walkways, railings and stairs--Rauch pipe spinner.
AVAILABLE AT EXTRA COST: (Call for pricing)
DRILL PIPE: Approx: 2500' used 3 1/2" x Range II x 3 1/2IF tool joints.
DRILL COLLARS: (4) 6" + or - x 28 to 30'.
PIPE TRAILER: Tandem axle.
DOGHOUSE: Tanddem axle tongue pull type
MUD PUMP: Auxillary skid mounted EMSCO D-175 (7 1/4" x 12")w/screw caps. p/b 6V71 Detroit diesel.
1982 Hendrickson (4) axle carrier p/b NTC-400 Cummins and Fuller 13 speed transmission.
1064-2 Failing 2500-A   58' mast w/stabbing board--Single drum drawworks with sandline drum--air clutches--Cathead--Hydraulic and manual leveling jacks--(2) 471 Detroit diesel engines--GD FY-FXX 7 1/2 x 8 mud pump--(4) part 7/8" drill line--Failing 3" swivel--4 1/4 x 38' square kelly w/roller type bushing--18" Failing rotary table--(2) makeup/breakout tongs--Hydraulic breakout cylinder--(1) set 3 1/2" center latch elevators--(1) set drill pipe slips. Trailer Mounted
1312-2 Failing Strat 100-HB   COMPARABL TO GD-3000
95' clear working space X 250,000 lb gross capacity--free standing mast w/racking board (5000' 3 1/2" pipe capacity)--Hydraulically raised and scoped--Single drum drawworks w/18,000 lb bare drum single line pull--(8) part 1" lines (144,000 lb hook load capacity)--9 X 32" double brake bands--Sandline drum (12,500 lb. bare drum single line capacity)--7" x 27" double brake bands--18" (2) place air clutch on main drum & 18" (1) plate air clutch on sandline drum--15" double rotor Parkersburg auxillary brake--Allison Torqmatic 5 speed forward and 1 speed reverse power shift control transmission--Allison torque converter--18" oil bath rotary table--24 cfm @ 135 psi air compressor--8' substructure w/beaver slide and catwalk--
INCLUDED WITH RIG: (more details available later):
(2) GD FXN 14" duplex pumps
(1) Onan 75KW generator set
(2) 350 BBL mud tanks
(1) 500 BBL fresh water tank
(2) Fluid Systems shakers
(1) Top dog house
(1) 4000 gal fuel tank
All handling tools to operate rig
(3) axle trailer
1378-1 Foremost DR-12 2004 900/350 IR HR-2 compressor--RC110 two speed w/9666 ft. lbs torque tophead--4500 lb capacity swinging and extending jib boom--6", 8" and 10" casing jaws--Discharge swivel, 10" with adapters to 6" and 8"--Breakout and hold back wrenches for 4 1/2" drill pipe--12 volt lighting package--4 1/2" x 2 7/8" IF saver sub--Cat 12gpm water injection system--10 gal electric DTH oiler--Pullmaster M8B sandline winch c/w 800' 5/16" line--Console mounted tophead torque control--Mounting arms and brackets only for cyclone. 2003 LT-0513 Sterling tandem axle chassis with 475 HP C-15 Cat engine and Fuller RTLO transmission
1355-2 Foremost DR-16 1994 900/350 IR air compressor w/high low settings--16" lower drive w/100,000 ft/lb torque--9000 ft/lb tophead torque--6, 8 & 12" casing jaws--12,000 lb main winch--8,000 lb wore line winch--Pango piston mud pump p/b hyrdaulic radial motor--DTH oiler--(4) cylinder Bean water injecton system--Hammer oiler with (2) compressor development filters--Safety sampling hammer--Miller Bobcat welder. 2700 original hours on rig and 5100 total hrs on truck.
Owner states: It burns no oil nor has any leaks, it just past a stringent safty on truck and drill snd a mast inspection for the mines it was a environmental rig for boart longyear it is nice it was built to 24 specs
1994 IHC Paystar 5000 tandem axle chassis p/b 400, N-14 Cummins--46,000 rears--20,000 fronts--Walking beam suspension--New tires--Weight 56,000 lbs.
920-7 Foremost Prospector 1996 COMPLETE BUGGY RIG DRILLING UNIT!
1996 FOREMOST PROSPECTOR
Reman 12.7 L Detriot Diesel series 60 engine
New Elgi 900/350 compressor
New transmission and clutch
Rebuilt transfer case
All hydraulics rebuilt

Completely gone through in 2011
Very low hour components
INCLUDED WITH RIG PACKAGE:
30 Pcs M-4 X 10’ RC pipe
Mincon mc-40 Hammer with m-4 interchanger
Sandvik tubex casing advancer on Mincon 5” 350 shank hammer
FMC LO918 injection pump
Cyclone and Rotary splitter
Discharge hose
1996 FOREMOST PROSPECTOR SUPPORT VEHICLE
900 gallon water capacity
70 pcs matrix M-4 RC pipe
Miller Bobcat 250 welder
Torch set
2 150 gal stock tanks
20# propane cyl
Tool Boxes
Ammo cans of fittings and parts
3” blooey line
Misc picks and shovels
Ext cords and welding acc


Rig and support vehicle are mounted on articulated steering buggies.
1343-1 GD 15W 1973 NICE CLEAN 15W
6" x 8" GD mud pump--GD WEJ air compressor w/blower 650/250--(3) drum drawworks with air clutches--42' mast--10" retract table--Hydraulic pulldowns--4 1/2" x 24' fluted kelly--(3) hyd. Leveling jacks--Side pipe rack--Platforms. New swivel--Rig completey overhauled 2010 including diesel engine.
1973 (4) axle crane carrier p/b 350 Cummins
1265-3 GD 15W 1970 GD 5 1/2 x 10 mud pump--10" retractable rotary table--53' mast--2 1/2" Little Giant swivel--(3) hydraulic leveling jacks--Air clutches-- (4) axle crane carrier p/b 350 Cummins.
1265-4 GD 15W 1974 GD 5 1/2 x 10 mud pump--10" retractable rotary table--53' mast--2 1/2" Little Giant swivel--(3) hydraulic leveling jacks--Air clutches-- (4) axle crane carrier p/b 350 Cummins. .
739-10 GD 2000 1976 5 1/2 x 10 GD mud pump--56' mast w/stabbing board--10" retractable rotary table--4 1/2 x 24' hex kelly--(4) hyd. leveling jacks--Hydraulic pulldowns--(2) 3 sheave traveling blocks w/6 part lines--Hydraulic breakout cylinder--(1) spinning cathead--Bailing drum--(2) cylinder Bean water injection system--Operators and helpers platforms--Weight indicator.
AVAILABLE AT EXTRA COST:
1000' used 4 1/2" x 20' x 2 7/8" IF tool joint drill pipe. ADD: $11,500.
1976 (4) axle Crane Carrier Corp. chassis with newer N-14E electronic Cummins diesel engine and RR transmission.
1367-1 Gus Pech H-48 1978
Super George H-48--Hydraulic driven--48" table opening--Ford Industrial gas engine--(3) scope kelly 90' depth--
(1) 30" bucket
1995 IHC 4900 tandem axle chassis--IHC DT-466 diesel engine
1332-2 IR RD-10 1984 (1) used 1984 IR model RD-10 drilling machine complete with the following attached equipment: 1050/350 IR twin screw air compressor Needs rebuilt) w/clutch--KT19A (600 hp) Cummins deck engine--70,000 pullback--44' mast (can run range II casing)--34' head stroke--High torque (7200 ft. lbs) dual motor spur gear head (0 to 92 rpm)--8 gpm Bean water injetion system--6000 lb. auxillary winch--20" table opening—(3) hydraulic leveling jacks—Misc. table bushings and pipe handling tools in side boxes of rig. Rig is mounted on 1982 (4) axle crane carrier w/671 Detroit diesel engine and RR transmission.
600-16 IR T-4W 1976 $75,000 buys this rig
750/300 screw compressor--8V92T (Silver Series) Detroit deck engine with less than 500 hours since new--Worm gear head--50,000 lb pullback--(2) winches--(2) 4 1/2" x 25' carousels--(3) hyd. leveling jacks--Water injection system--DTH hammer oiler--
OPTIONAL EQUIPMENT:
New compressor gear set including installation to make unit produce 900/300 air ADD: $5000.
AVAILABLE AT EXTRA COST:
Auxiliary powered 750/250 compressor package: ADD $12,000
Drill Pipe: up to 1950' of 4 1/2" x 25' x 3 1/2 reg. @ $360 each.
Tandem axle crane carrier
652-10 IR T-4W 1988 $125,000
750/250 air--8V71 Detroit deck engine--worm gear head--(5) rod carousel--Water injection--DTH oiler--
(1) stabalizer
IR 360 hammer--6", 6 1/2" & 8" hammer bits
6", 7 7/8", 8 3/4" & 12 1/4" tricone button bits--Plus other misc. pipe handling tools.
1988 Crane Carrier p/b 350 big Cummins and 10 speed transmission--All new tires--
600-15 IR T-4WDH 1981 1050/350 HR2 twin screw compressor--70,000 lb pullback--Cummins QSK19 engine--(4) pod and (7) pod carousels--(rebuilt) double motor spur gear head 8000 ft. lbs torque--water injection-- DTH oiler-
AVAILABLE AT EXTRA COST: Up to 1950' used 4 1/2 x 25' x 3 1/2 reg drill pipe: Add $350 ea.
1981 Crane Carrier p/b3208 Cat
1346-15 IR TH-55 1990/1998 RARE MUD AND AIR TH-55 REDUCED TO $225,000USD
900/350 HR-2 air compressor--Failing FM-45 5 x 6 duplex mud pump--carousel--casing hammer--(4) hydraulic leveling jacks--Side pipe rack w/fast slide--Sandline winch--breakout wrench--
A hard to find tophead rig with big air and piston mud pump.
1998 Western Star model 4964SX tandem axle chassis p/b N-14 Cummins and 18 speed transmission
1285-3 IR TH-60 1979 38' mast--750/250 air--Cat water injection--Side pipe rack with fast slide--Hydraulic pipe spinner--Operators and helpers platforms--(4) hydraulic leveling jacks--Sandline drum
INCLUDED WITH RIG:
960' 2 7/8" x 20' by 2 7/8IF tool joint drill pipe.
Holte casing hammer & oiler
Misc. parts and tooling
Rebuilt engine 2003, Top head motors 2002, Cotta box 2000, transmissison 2000 & compressor replaced new 1996.
1979 IHC Paystar 5000 tandem axle chassis p/b 8V92 Detroit diesel
725-7 IR TH-60 1981 WITH OR WITHOUT CASING HAMMER.
750/250 IR screw compressor--38' mast--HD (22,000 lb) single line pull hydraulic winch--10,000 lb. electric winch--20 gpm water injection--Lincoln 250 amp gas powered welder--
INCLUDED WITH RIG:
DRILL PIPE: 300' 3 1/2" x 20' x 2 3/8IF tool jointS
CASING HAMMER: 915 Welen.
HAMMER: 6" IR model QL
CAROUSEL: 4 1/2" x 20' (not on rig) w/inserts for 3 1/2" pipe
MISC: Bit sub
Engine major overhaul 6000 hrs--PTO major rebuild 400 hrs--Swivel has new bearings & seals 400 hrs--Welen casing hammer has been converted to new style operating valves
1981 IHC Paystar 5070 p/b 3406C Cat and model 14613 HD 13 spd. Transmission--44,000 lb. rear ends--
1346-1 IR TH-60   TOPHEAD MUD & AIR
GD 5 1/2 x 8 duplex mud pump--Hydraulically driven--750/350 IR twin screw air compressor--5000 ft/lbs torque top head drive--34' mast--38,000 pullback--20,000 lb winch--Water injection--Oversize operators and helpers platform--(4) hyd. Leveling jacks--#2vvv
2004 Western Star (4) axle chassis
1346-2 IR TH-60   TOPHEAD MUD RIG
(2) GD 5 x 6 hyd. Driven duplex pumps--No air compressor--42' mast--5000 ft/lbs torque tophead--38,000 lb pullback--20,000 lb hyd. Winch--(4) hyd. Leveling jacks--Oversize working platform--#8
1998 IHC Paystar 5000 tandem axle chassis.
1346-3 IR TH-60   COULD CONVERT TO REVERSE
No mud pumps, hyd. drives or oil cooler--Could be converted to RC--60,000 lb pullback--46,000 lb winch--5000 ft/lbs torque tophead--(4) hydraulic leveling jacks--53' (range III) mast--Oversize working platform--#11
2001 KW (4) axle chassis
1346-4  IR TH-60    TOPHEAD MUD RIG
 1) GD 5 1/2 x 8 duplex pump--Range III (53' mast)--60,000 pullback--46,000 lb winch--5000 lbs torque tophead--(4) hydraulic leveling jacks. #7
2004 Kenworth (4) axle carrier.
1346-7 IR TH-60   TOPHEAD BIG MUD RIG
 (2) GD 5 1/2 x 8 duplex pump--Range III (53' mast)--60,000 pullback--46,000 lb winch--5000 lbs torque tophead--(4) hydraulic leveling jacks. #14
2001 Keworth (4) axle chassis
1232-1 Longyear 34   Longyear 34--Bean 35 pump p/b gasoline motor through 3 speed transmission--Angle hole capable (head rotates 180 degrees)--
INCLUDED WITH RIG:
Cat head and wirelinge winch w/3000' cable--Skid mounted.
AVAILABLE AT EXTRA COST:
Approx. 1500 ft. + B Rods
Some H rods
Some casing
Core barrels (some w/split innertubes)
Specialty Tools
A complete inventory will be available soon.
Military 6 x 6 mounted by Longyear in 1972.
1363-1 Mayhew 1000   COMPLETE PACKAGE OR PICK AND CHOOSE ACCESSORIES.
Mayhew/Badger hybrid--5 x 6 Failing model FM-45 pump--LeRoi (100S2 600cfm @ 125 psi capacity) Air compressor--7 1/2" non retractable rotary table--(3) speed table transmission--Double drum drawworks--Air clutches on drawworks--32' badger mast--23' kelly--Little Giant swivel--Hydraulic motor, 5 speed transmission--chain pulldowns--(3) hydraulic jacks--No water injection.
INCLUDED IN RIG PACKAGE:
Drill Pipe: 300' 2 7/8" x 20' x 2 3/8 tool joints--Misc subs
Rolling Stock:
1979 Ford 8000 w/new 20' flatbed--3208 Cat-Good tires
2007 Dodge 3500 dually 4 door 4 x 4 1 ton p/b Cummins diesel & Allison transmission 170,000 miles.
32' dually goose neck trailer.
Grouter: 50-500 Geo-Loop w/real and hydraulic hookup for sand hoppe, gas engine on grouter.
Sand hopper: Hydraulic Geo-loop 2500 lb. capacity.
Hose reel: 2012 hydraulic Geo-Loop.
Water tanks: Plastic 1000 gal-(2) 500 gal--(1) 300 gal.
Welder:
Miller Bobcat 250, gas engine w/leads and helmet--(2) full cutting torch set-ups, (1) full size (1) small set.
Portable Mud pits: (2) steel type
MISC:
Geothermal Purge Cart--Fuel tank/pump/ tool box combo for truck.
(1) Steel welding table--Parts washer--Misc. tool boxes and hand tools--Misc. reels and hoses--Misc parts and supplies with shelving--Misc. drill tooling--Multiple items not listed will be included.
Many components have been rebuilt in the last year to include: rotary table and table transmission plus.
1978 Ford 9000 p/b 350 Cummins
725-10 Mayhew 1000   4 1/2 x 5 mud pump (cracked but can be repaired--5 1/2" rotary table but the whole rig will slide on the truck for setting casing--
300' 2 7/8" x 15' drill pipe--(2) bit subs--
1978 Chevrolet single axle chassis w/good 366 gas engine and 5 x 2 transmissions--Tires 60%.
578-6
Midway 1500 1974/2015 COMPLETELY REBUILT & REMOUNTED ON CA CARB COMPLIANT PETERBILT
New DSM M-44 drawworks with air clutches--New 34' Mast--New Little Giant swivel--5 1/2 x 10 GD mud pump--8" retractable rotary table--Hydraulic pulldowns--3 1/2 x 34' fluted kelly--(4) hydraulic leveling jacks--Side pipe rack w/fast slide for 20' drillpipe. Operators and helpers platforms--breakout tong
2015 Peterbilt 567 tandem axle chassis--This unit is CA carb compliant.
819-23 Mobile B-47   3" Moyno pump--3 cylinder Deutz diesel deck engine--Wiggle tail head--Hyd. Leveling jacks--Hoist line--(1) cathead--Pipe rack
INCLUDED WITH RIG:
200' 2 5/8" x 5' sections Mobile Lock drill pipe.
GMC Top Kick single axle chassis with Cat diesel engine.
1384-2 Mobile B-54X 2013 LESS THAT 1000 HOURS
10 speed tophead drive--8600 ft-lbs torque--Max rotary speed 1060 rpm--13' stroke--24,000 pull back--16,000 pulldown--10" travel in and out slide base--Cummns deck engine--Winches: Main: 100' 1/2" cable--8500: 8500 lbs--Auxiliary: 75' 5/16" cable- 4500 lbs
Safe-T-Driver: 1/4" cable--900 lbs
Wireline: 400' 3/16" cable--1200 lbs--Max winch cable capacity 3500'
SPT Automatic hammer: ASTM D-1586 standards, standard duty and heavy duty: 140 lb-170 lb-300 lb and 340 lb--Hydraulic self compensating
OPERATING CAPACITIES:
150' 3 1/4" ID hollow stem
300' 6" continuous flight augers
60' 14" continuous flight augers
1500' 2 7/8If rotary drilling
1200' NQ diamond core drilling
2012 Peterbilt 4 x 4 chassis--949 total hours including travel and drill operations--
1360-2 Mobile B-61HD 1988 Standard Mobile B-61HD--.9 Cummins (4bt, 100 hp, 3.9 liter) diesel deck engine
8,500 lb main winch
29' ft. mast
rod chuck
Main hoist line
Auxiliary hoist line
Auger racks
No pump
INCLUDED WITH RIG:
UNKNOWN QUANTITY OF 4 1/4" hs AUGERS
1988 Ford single axle chassis p/b Ford diesel engine.
1327-3 Mud Pump
Air driven
Gardner-Denver Steal Deal $3500
Gardner-Denver 5 x 6 air driven mud pump.
Bare Pump

1336-6 Pipe Trailer     Pipe trailer--Tandem Axle fifth wheel mounted pipe basket with laydown system/pipe rack (can go to either side), can hold approx. 2000 ft of 3.5" drill pipe OR 1500 ft of 4.5" drill pipe.
727-1 Portadrill 524 1985 REFURBISHED AS FOLLOWS: New pinion and ring gear in drawwors--New brake bands--Table rebuilt by Portadrill--New bushings in all levers on control console--New driller's platform--New hydraulic valve bank at drillers console--New steel sheeting on each side of rig--New paint.
5 1/2 x 8 GD mud pump w/rod oiler--Atlas Copco model DT-2 (400 cfm @ 125 psi) piston air compressor--36' mast--2" swivel--3 1/2" x 24' fluted kelly--Hydraulic pulldowns--7 1/2" retractable rotary table--Single sheave traveling blocks with (2) part lines both drums--(4) hydraulic leveling jacks--Side pipe rack and fast slide for 20' pipe--Operator and Helper platforms--
1985 IHC tandem axle chassis w/ DT-466 diesel engin & 5 x 4 transmissions.
578-4 Portadrill 524 1974/2014 COMPLETELY REBUILT WITH AIR DRAWWORKS & REMOUNTED ON CA CARB COMPLIANT TRUCK
5 1/2 x 8 GD mud pump-- Speedstar double drum drawworks with air clutches--Hydraulic driven 7 1/2" retractable rotary table--(3) hyd. jacks--34' mast--24' kelly--3 1/2" x 24' kelly- Portadrill 2" swivel--Bailing drum--Hydraulic pulldowns--Operators and helpers platforms--Side pipe rack and fast slide.
2014 Peterbuilt tandem axle chassis p/b tier 4 engine--CA carb compliant.
819-26 Portadrill 522 (1500 Class) 1972 EXCELLENT URANIUM RIG
5 1/2 x 8 GD mud pump--36' mast--Bailing drum (no cable)--3 1/2 x 24' fluted kelly--2" swivel--Hydraulic pull downs--7 1/2" retractable rotary table w/5" mater bushing--(5) speed table transmission-- (2) part line both drums--Side pipe rack for 20' pipe-- Operators and helpers platforms.
AVAILABLE AT EXTRA COST:
400' used 2 7/8" x 20' x 2 3/8"IF tool joint drill pipe. ADD: $4000.
MANY RECENT REBUILDS: New kelly and bushing 2012--Power/chain case rebuilt by Portadrill 2009--Rotary table rebuilt by Portadrill 2010--Mud pump gear end inspected 2013 by qualified technicion and stated to be 85% of new--Rig was sanded and primed 2009 but never painted.
1984 Autocar tandem axle chassis with 3208 Cat diesel engine
1197-2 Portadrill 10-TG retro 1967 CONVERTED TO TOPHEAD DRIVE--
500/250 model 256S2 LeRoi air compressor--671 Detroit deck engine--Cyclone tophead--Water injection--Operators and helpers platforms--Side pipe rack--Bailing drum--(3) hydraulic leveling jacks.

AVAILABLE AT EXTRA COST:
Weldco-Beale model 915 casing hammer w/cylinder type handling package.
1967 IHC tandem axle chassis with 549 gasoline engine and 5 x 4 transmissions.
1197-1 Portadrill 10-TL 1973 EXCELLENT CLEAN RIG
70,000 pullback (6" hoist cylinders)--Tophead drive--500/250 air--Bailing drum--Hydrastat powered drawworks with power up and down feature--(2) cylinder Bean water injection system--DTH oiler--Operators and helpeers platforms--Hydrulic breakout tong.

AVAILABLE AT EXTRA COST:
Casing Hammer--915 Weldco-Beale model 915 with hydraulic cylinder handling package--
1973 IHC Paystar tandem axle chassis with 549 gasoline engine.
920-6 Protrack 1200 1992/2011 BARGAIN! $255,000USD
Track Mounted RC drilling unit:1060 Hours SMOH

Rebuilt 14 L series 60 Detroit Diesel
New Elgi 900/350 air compressor
New updated Clutch
New receiver tank
FMC LO918 injection pump
Portadrill oiler
Hillside leveling with 6 way blade
14’ Stroke mast for 10’ rods
Hydraulic pipe loader
Completely rebuilt in 2011
Track Mounted
1369-1 Pump Hoist Smeal 12T 2008 2008 Smeal 12T--36' mast--(2) rear hyd. jacks--Cathead--Sandline drum--Hyd. oil cooler--Tool boxes. 2008 Chevrolet Kodiak single axle truck p/b Isuzu diesel engine & automatic transmission--Approx. 105,000 miles.

1200-2 Pump Hoist National Crane 2006 400 Series National crane-20,000 lb. capacity--(4) hydraulic outriggers--Set up for pump work--welder & torch-Pak Rat boxes--Storage for rigging 2006 Peterbuilt 335 single axle chassis. 2006 Peterbuilt 335 single axle chassis.
1369-1 Pump Hoist Smeal 12T 2008 2008 Smeal 12-T--36' mast--(2) rear hyd. jacks--Cathead--Sandline drum--Hyd. oil cooler--Tool boxes. 2008 Chevrolet Kodiak single axle truck p/b Isuzu diesel engine & automatic transmission--Approx. 105,000 miles.
1227-1 Pump Hoist Shopbuilt   A CHEAP FIXER-UPPER!
Shopbuilt unit--30,000 lb. capacity--Jager Mfg.double drum drawworks--6 part lines on main drum--6 cylinder IHC propane deck engine--Cathead--(2) rear hydraulic leveling jacks.
1978 Chevrolet C60 tandem axle chassis w/350 gasoline engine.
1208-1 Robbins T-37 1975 EXTREMELY HIGH TORQUE TOPHEAD DRIVE
850/150 air--30,000 pullback--50,000 pull down--Mechanical quill tophead drive for extremely high torque drilling--Carousel--Hyd. Leveling jacks.

Engine was rebuilt in 2001 and unit has not drilled since. Rig was ran through company shop in July 2011 and following is the report: Engine was strong with no apparent problems. Truck Transmission gears were good--Mast raised properly and tophead rotation was confirmed to be ok--No apparent major hydraulic or air leaks.
1975 (4) axle crane carrier chassis with 350 Cummins
920-9 Schramm T-450GT 2010 2010 SCHRAMM 450 GT
3613 Hours
Mincon 5” 350 shank hammer with Mitsubishi casing advancer
30 pcs Matrix M-4 X 10’ RC drill pipe
Sliding angle mast
Remote tramming
Cyclone and rotary splitter
Discharge hose
M-4 Rock bit adaptor
M-4 Interchanger
Miller bobcat 250 welder
FMC LO918 injection pump
2 Winches
Misc air and hand tools
36 & 48 inch pipe wrenches
Factory manuals
INCLUDED WITH PACKAGE:
1995 INTERNATIONAL 4800 4X4 PIPE TRUCK AND PIPE TRAILER
S-24 10536 hours 152060 miles
Misc hand tools
5” mincon mc42 bit
36 Pcs M-4 X 10’ RC Drill Pipe
Mud mixer
2” suction hoses
3” Blooey line
300 Gallon stock tank
150 gallon Stock tank
INCLUDED WITH PACKAGE:
1997 T HAULMARK CARGO TRAILER
2 mincon mc 42 hammers
4 ¾ mc 42 bit
2 5” mc 42 bits
Rock bit adaptor
Rock bit adaptor sleeves
2” wilden pump
2” trash pump
Bucket pump
Misc tophead plumbing
Misc Dixon inserts and camlocks
Misc oils
Pressure washer
315L Cat hydraulic powered under carriage w/remote control tramming.
920-8 Schramm T-450GT 2011 2011 SCHRAMM 450 GT
2986 hours
Sliding angle mast
Cyclone and Rotary splitter
Discharge Hose
Remote control tramming
FMC LO918 injection pump
Miller bobcat 250 welder
2 winches
30 pcs M-4 x 10’ RC pipe 90%
Mincon 5” 350 shank hammer with tubex casing advancer
Mincon mc 42 hammer and interchanger
Misc used bits and subs
Factory manuals
INCLUDED WITH RIG PACKAGE:
1998 INTERNATIONAL 4800 4X4 W PIPE TRAILER
Truck 826 hours 115968 miles
T-25 3.5 Ton military trailer
67 pcs M-4 x 10’ rc drill pipe 50 %
2” wilden pump
2” trash pump
Mud mixer
M-4 x 10’ 5” stabilizer
6” casing aligner
2 ea 36 and 48 pipe wrenches
Misc shovels & pick
Space heater
2 Lg wheel chocks
4 Sm wheel chocks
Vise
2 150 gal stock tanks
1 300 gal stock tank
3 2” water lines
NCLUDED WITH RIG PACKAGE:
2008 CHARMAC CARGO TRAILER
Mincon mc 40 hammer
Rig air needle
2” water line
Misc hand tools
Misc oils
Misc filters
1” injection hose
2 sandvik casing shoes
2 rock bit adaptor sleeves
Shop vac
20# propane tank
Drill and grinder
Misc Dixon fittings
Misc top head plumbing
Barrel pump and bucket pump
Victaulic clamps
Wear plates
315L Cat hydraulic powered under carriage w/remote control tramming.
920-5 Schramm T-450GT 2012 COMPLETE PACKAGE!
Track mounted dual tube exploration rig--1050/350 Sullair--C15 Cat--Swing away control panel--Sliding angle mast--(2) winches--(4) hydraulic leveling jacks--FMC LO918 injection system--Miller 250 Bobcat welder--Cyclone and Rotary splitter--3477 total hours.
INCLUDED WITH PACKAGE:
S-18 & T-8 1992 INTERNATIONAL 4800 4X4 & PIPE TRAILER
Truck 8057 hrs 83111 miles
T-8 3.5 Ton military trailer
2” wilden pump
2”trash pump
800 gal water tank
77 pcs matrix M-4 x 10’ RC drill pipe 50%
Mud mixer
Bop setup
4 lg wheel chocks
2 150 gal stock tanks
2 300 gal stock tanks
2 ea 48 & 36 pipe wrenches
6”casing aligner
3”blooey line
2” suction hoses
1” suction hose Misc. shovels, picks and sledge
Drill and grinder
Torch set
Hand tools
INCLUDED WITH PACKAGE:
(30 pieces) 600' 4" x 20' Matrix M-4 RC drill pipe 90%
(1) 5" Mincon 350 djsml js,,rt w/350 dhsnk hsmmrt w/Mitsubishi ultra max bit casing advancer
(1) 4" Mincon MC-42 hammer
(1) Rock bit adaptor and interchanger
Misc subs
Factory manuals
T-15 2006 CHARMAC CARGO TRAILER
Air drill 116 RC hammer
Mincon 5053 RC hammer
Mincon MC 40 hammer
3 Air drill 5 ¼ bits
Mincon 5053 5 ¼ bit
M-4 rock bit adaptor
2 Mincon 5 ¼ bits
M-4 rock bit adaptor sleeves
Case rig fuel filt
Case rig oil filt
4” remet back reamer
M-4 x 5’ drill pipe
5 gal safety can
Spare air needle
Misc 3” top head plumbing
Misc Dixon hose ends
M-4 saver sub
Air drill tubes and sleeves
7” and 4” deck bushings
Misc fittings
Misc oils
Wear plates
315L Cat hydraulic powered under carriage w/remote control tramming.
736-9 Service King SK1000
Super Double
2012 Close to NEW for a used price!
Drawworks:
• 2012 SK1000 mechanical drawworks rated at 1000 HP
• (2) Caterpillar C-15 engines, EPA Tier 3 certified
• Allison 5960 Transmission
Mast:• Service King telescoping mast, 118′ x 9′ wide
• Maximum hook line with 8 lines – 350,000 lbs; 10 lines – 450,000 lbs
• API 4-F certification on plate leg
• Crown blocks include 5′ x 36′ sheaves grooved for 1-1/8″ line and (1) 36″ fast line sheave
Substructure:
• 21′ high x 36′ long x 10′ wide with clear height under the rotary beams of 18′
• Rated maximum rotary load of 500,000 and maximum setback of 500,000
Mud Pumps:
• (2) Gardener Denver PZ-9 triplex rated 1050HP
• (2) Caterpillar C-27 engines, EPA Interm Tier 2 certified, trailer mounted
• 6″ x 8″ x 14″ charge pumps
Mud System:
• (1) 240 bbl, 3 compartment mud tank
• (1) 5″x 6″x11″ 50 HP mix centrifugal pump
• (1) 5″x 6″x11″ 50HP desilter pump
• (2) Fluid system single deck , 4 panel shakers
• (1) Fluid system mud cleaner with 10 desilter cones
• (1) 400 BBL capacity 6′ x 10′ x40′ with (1) 6″ x 14″ 75 HP centrifugal pump
Rotary Table:
• Oilwell, 30-21 A, 27-1/2″ rotary table
• 800,000 lbs rotary load
Generators:
• (2) Caterpillar 350KW C-15, EPA Tier 3 Certified, trailer mounted
Traveling Blocks:
• (2) Sentry 250 ton hook/block combination
• Rated 250 tons API with (4) 36″ sheaves grooved with 1-1/8″ wireline
Drilling Line:
• (1) 1-1/8″ x 5000′ EIPS 6×19 IWRC
Swivel:
• (1) Sentry, 250 ton
• 6-5/8 reg left hand pin
Kelly Bushings:
• (1) 5-1/4″ x 40′ hex complete with square drive bushings
• 6-5/8 reg LH XO and 4-1/2″ XH pin
Dog House & Tool House:
• (1) 8′ x 20′ complete with knowledge box, storage, and benches
• (1) 8′ x 20′ trailer mounted tool house
Instrumentation:
• (1) Totco 500,000 lbs weight indicator
• (1) Totoc drill pipe torque gauge
Tubulars:
• 10,000′ premium 4-12″, 16.60 lbs, grade S135 drill pipe
• (8) 6-1/4″ x 31 DC with 4-1/2″ XH connections
• (8) 8″ DC w 6-5/8″ regular connections
Fuel Storage:
• (1) 5,000 gal fuel tank
Auxiliary Equipment:
• Survey machine with 20,000′ of .108 line
• Pipe wrangler
• 20,000 lbs multifunction loader (forklift, front-loader, and Jib-boom)
Top Head:
• API VentureTech top head, 250 tons
• 100 RPM dynamic load rating, 158 tons
• Maximum torque 35,000 ft-lbs
• Maximum circulation pressure, 5,000 PSI
• Standard steam connection 4-1/2″ I.F. RH
• Gooseneck vertical access plug 3″ NPT
HPU:
• (1) C-18 Caterpillar engine
• Hydraulic flow rate 265 gpm
• Maximum hydraulic pressure, 110 gallons
• HPU skid 20′ x 8′
Trailer mounted (can be moved without removing mast in all states except CA.)
1053-1 Soilmec SR-20 2012 120' drilling depth--Max. diameter 71"--Quad kelly--Cummins QSB4-5 159 HP Tier 3 engine--73,755 lbf rotary torque--Crowd force pull down/pull up 16523 lbf/27876 lbf--Main winch 10701 lbf bare drum--
3116 total hours.
Crawler mounted
727-2 Speedstar SS-15III 2001 NICE LATER MODEL KELLY RIG:
5 1/2 x 8 GD duplex and 3 x 4 Mission centrifugal mud pumps--Sullair 500/200 screw air compressor--Hydrastatic powered drawworks with air clutches--53' mast including removable extention--(1) 5" x 24' kelly and bushing & (1) 3 1/2" x 24' kelly with bushing--10" retractable rotary table w/master bushing--Double sheave traveling blocks both drums with (3) part lines--(4 hydraulic leveling jacks--
2001 Peterbilt Model 357 p/b C-15 Cat (435 hp)--Fuller RTO1708LL transmission
1371-1 Speedstar SS-15 1973 500/250 model 256S2 LeRoi compressor--5 x 6 GD mud pump--Tophead drive--38' mast--Double drum drawworks--1000 lb. hydraulic winch--5000 lb sandline drum w/1000' sandline--(3) Hyd. leveling jacks--Operators and helpers platforms.
INCLUDED WITH RIG:
500' used 4 1/2 x 20' drill pipe.
ummins rebuilt 1000 hrs--Mud pump rebuilt 550 hrs--Air compressor rebuilt 0 hrs.
1973 (4) axle crane carrier chassis p/b 290 Big Cam Cummins boosted to 400 HP
1322-1 Speedstar SS-15II 1977 SPECIAL $85,000
750/300 Sullair compressor--Double drum drawworks w/air clutches--Bailing drum--4 1/4" x 23' kelly--8 1/2" hydrastatic driven retractable rotary table--18 gpm Bean water injection system--DTH air/electric oiler--(4) hydraulic leveling jacks--35' mast--Side pipe rack--Mounting brackets for a piston mud pump are included but there is no mud pump or pump drive components.
INCLUDED WITH RIG:
6" and 10" bit baskets--drill pipe roller slips--drill pipe slips--chain wrench--NO drill pipe available.
1977 GMC tandem axle chassis p/b 450 HP Detroit diesel engine and 13 speed transmission--
1312-3 Speedstar SS-40SP 1982 SPECIAL PRICE$310,000
60' mast w/stabbing board--GD FD-FXD 51/2" x 10" mud pump on deck w/ extended frame to accommodate a second pump--(3) drum drawworks with air clutches--Hydrabrake--Catheads--18" Failing rotray table--4 1/2" x 38' kelly--All 4" plumbing w/manifold for second pump--6 part 3/4" lines both drums--TC-150 ton Oilwell swivel--(2) hanging/balanced breakout/makeup tongs--Weight indicator both drums--(4) hydraulic and (2) screw leveling jacks--
INCLUDED WITH RIG:
EXTRA GD FD-FXD 5 1/2 x 10 pump & clutch (will bolt right in place and connect with hammer unions)
Extra swivel wash pipe and misc. parts.
1982 Crane (4) axle crane carrier with N-14E (525 hp) engine and 13 speed transmission--Spicer gear boxes conversion--Tires are very near new.
669-3 Speedstar SS-135 1981 NICE CLEAN RIG!
5 x 6 GD mud pump--8" retractable rotary table--(4) hydraulic leveling jacks--Operators and helpers platforms--32' mast--pulldowns--3 1/2 x 24' fluted kelly--No bailing drum--20' Pipe rack and fast slide.
NCLUDED WITH RIG:
800' used 3 1/2 x 20' x 2 3/8IF drill pipe--Drill pipe slips.
AVAILABLE AT EXTRA COST (call for pricing and details:
Water truck: 2400 gal flat top tank on 9000 Ford chassis.
Backhoe: 580 Case extendahoe
Trailer: Backhoe trailer
1981 IHC tandem axle chassis p/b 250 Cummins.
1322-1 Speedstar SS-15II 1977 KELLY RIG (COULD CONVERT TO REVERSE
750/300 Sullair screw compressor--Hydrastatic powered 8 1/2" retractable rotary table--18 gpm Bean water injection system--35' mast--Air clutches on drawworks--Sandline drum--4 1/4" x 25' kelly--Electric DTH oiler--(4) hydraulic leveling jacks--Side pipe rack for 340' 4 1/2 x 20' drill pipe--
1977 GMC tandem axle chassis p/b 60 Series Detroit diesel engine and 13 speed transmission.
999-1 Speedstar Mini-Star 1990 EXCELLENT LIGHT WEIGHT GEOTHERMAL RIG

220 cfm @ 225 psi Sullair compressor--4 1/2 x 5 GD mud pump--Tophead drive--John Deere 4 cylinder deck engine--Single stem loader--Side pipe rack for 20' drill pipe--(2) winches--
1990 IHC single axle chassis
1127-4 Speedstar
72
Cable Tool   Star 72 Cable tool rig--Case diesel deck engine--(3) hydraulic leveling jacks--(1)stem--(1) set jars--(2) 6" button bits 1956 Reo tandem axle chassis with gasoline engine
736-12 Taylor RT-5000 2007 This rig is road legal in CA. and has a very small foot print. Ideal for the deep large diameter water wells or geothermal wells. Sold as a package only.
Drawworks:
• 2007 Taylor RT 5000 drawworks rated at 500 HP
• (1) Caterpillar C-15 engines, EPA Tier 3 certified
Mast:
• Taylor RT 5000 square set derrick, 70′ high
 200,000 lbs static hook load
Substructure:
• Height 13.6′ with 15′ K.B. elevation
Mud Pumps:
• (2) Gardener Denver PZ-7 Triplex pumps
• (2) Detroit 60 series, 600 HP engines, EPA Tier 3 certified
• (2) 5′ x 6′ x 11′ centrifugal charge pumps
Mud System:
• (1) 220 bbl, 3 compartment mud tank
• (1) 5″x 6″x 11″ 50 HP mix centrifugal
• (1) 5″x 6″x 11″ 50HP desilter pump
• (2) Fluid system single deck, 3 panel shakers
• (1) Fluid system mud cleaner with 10 desilter cones
Rotary Table:
• DSM 18″ rotary table
• 200,000 lbs rotary load
Generator:
• (1) Magnum 235 KW, EPA Tier 3 Certified
Drilling, Tripping Blocks & Swivel:
• (2) McKisick 6 line, 100 ton blocks
• PG 60 Western Rubber, 100 ton swivel
Tubulars:
• 5000′ premium 41/2″ XH 16.60 lbs, Grade S135 drill pipe
• (8) 6 1/4″ x 31′ DC with 41/2″ XH connections
Trailer Mounted
1374-1 Texhoma Taurus 100DMB 1981 Max 96" diameter and 80' depth. 1981 Mack
1219-3 Texhoma 800 2006 3 scope kelly 4 1/4" inner kelly--90' depth--6 cyl. John Deere diesel engine--No tools 2006 IHC w/Cummins-114,000 miles
652-9 Truck-Parts Rig HME-Foremost 1980-1990 $20,000
1980 Drill Systems (Foremost) AV1000 air rotary partial drilling machine. (Mast and tophead are missing)--Complete with (2) mast raising cylinders--750/350 Sullair compressor unit.--All rig hydraulics pumps--Control panel--(3) hydraulic leveling jacks--oil cooler--tool boxes-hydraulic winch--Rig is PTO driven by truck engine.
Mast & tophead were used on another drill. This could be a good HD truck to mount a rig on or…..by adding a mast and tophead it could be a medium sized drilling machine.
1990 Heavy Duty HME chassis 20,000 lb front axle and 46,000 lb rear axles-- p/b electronic 8V92TADD (450 HP) diesel engine
706-3 Walker-Neer 150-25 1980 COMPLETE WORKING UNIT.

DRILLING RIG: Walker-Neer Apache 150-25--50/150 mast-- King model 10PS tophead drive--Hydraulic arm drill pipe/drill collar/casing handling arm and pipe rack system--Single drum drawworks w/6 part lines p/v671 Detroit diesel engine through Allison torque converter and 5 speed transmission--Rig is mounted on (4) axle crane carrier.
SUBSTRUCTURE: 14" H x 8' W x 36' L back on sub base.
MUD PUMP: Gardner-Denver FXN 7 1/4 x 14" duplex w/Matco quick change fluid end p/b twin 671 Detroit diesel engines.
AIR COMPRESSORS: (2) 1050 cfm @ 150 psi Gardner-Denver screw type air compressors each p/b 3406 Cat diesels.
AIR BOOSTER: (1) Joy model WB-12X 7-5 p/b3406 Cat.
DOGHOUSE: 8' W x 40' L trailer mounted w/automatic driller, work bench, lockers, storage cabinets.
GENERATOR: 36KW John Deere diesel-Rig lighting.
TANKS: 300 bbl water tank, Diesel fuel tank.
WATER/SOAP INJECTION SYSTEM:
Myers triplex pump w/soap tank (skid mounted)
DRILL PIPE & COLLARS:
Approx. 4700' used 3 1/2" w/3 1/2IF tool joints.
(14) 6" drill collars.
(3) 8' x 40' pipe tubs.
Hydraulic pipe racks w/ tool tub.
BOP EQUIPMENT:
(1) 3000# annular.
(1) Washington rotating head.
HANDLING EQUIPMENT:
(2) Web Wilson Type "C" tongs.
Misc. subs and tools

Rig is mounted on (4) axle Crane Carrier chassis.
706-13 Walker
Neer
250-40   BARE OR PACKAGE
61' x 250,000 lb gross capacity free standing mast--Walker-Neer tophead drive p/b Sunstrand hydrastatic motor--Rebuilt pipe handling boom with used clamps--3408 Cat (475 hp) engine--5860 Allison transmission--Hydraulic leveling jacks with locking rings--Marco pump drive gear box with (4) hydraulic pumps--40,000 lb single line pull drawworks--1200' 1" IWRC on spool on rig--Water cooled air actuated disc brake for auto drill and Hydro brake--Air controls at drillers station for mud pump actuation--Reengineered hydraulic storage capacity and cooling--24" walkway all around rig--Hyd. Wireline unit with 10,000' .071 wire lineon 8000 lb hydralic winch--75 KW Baldor generator p/n John Deere diesel--Walker-Neer power wrenches mount in mast base--Cavins slip dies and bowl for 3 1/2" to 8"--Snelson vapor proof mast lights--Walker-Neer wash pipe assemblies and extra parts--Walker-Neer engineering and drawwing books
INCLUDED WITH BARE RIG:
Doghouse: 45' tandem axle trailer--250 ga;. Propane tank--(3) section Lubster-100 gal. each section--110 vvolt electric transfer pump--8' x 8' tool room w/bench, vise and (6) lockers--Electric furnace and propane heaters --Snelson vapor proof lighting--Includes lots of extra parts and tools.
INCLUDED AT PACKAGE PRICE:
Mud Pump: 14" stroke Emsco D-375 w/5 1/2" linera p/b 3406 B Cat--Airflex clutch with double 14" plates--10" suction with boom handler--Many extra expendable parts etc--
Substructure:
12' "H" Beams welded and pinned together to form a 10' W x 40' L sub--Folding 4' x 10' ramp on front--
Air acutated BOP closing unit--Fset up to operate without rigging cables--Turnbuckles and screw jacks.
Pipe racks: (2) racks with hydraulic cylinders--Hydraulic valve bank at driller station to operate adjustable pipe racks--
Diverter: Fixed rubber that mounts on 8" casing--
Extra parts and accessories too numerous to mention

Tri-axle trailer
1101-2 Wilson Mogul 42   95' x 300,000 hydraulically raised and scoped mast--Single drum drawworks grooved for 1 1/8" lines w/26" (2) plate Wichita air clutch--Hydramatic brake--12V71 Detroit w/Allison 5 speed transmission--27 1/2" rotary table w/18" clutch--Sowa (4) sheave 150 ton traveling block--Weight indicator--Hydraulic breakout cylinder--6 1/2 clearance under substructure and back on ramp--No kelly, swivel or tongs included.
Rig is owned by a water well company and was used for drilling large diameter wells. It has been used very sparingly in the last few years and is stated to be in very good mechanical condition.
Three Axle Trailer
CTCS
